Time

2 hours

Complexity

Beginner

Cost

$270

Introduction

I used to think hydroponics was borderline magical, some sort of complex science that was out of my reach. Turns out it's mostly just PVC, a pump and some water. Building a hydroponic garden actually is faster and easier than preparing a soil garden bed. Plus, it produces faster-growing vegetables with a fraction of the water.

My partner Steve and I undertook this project together. We decided to make a system compact enough to rest on a table in a small house or apartment, but still large enough for nightly salads.

As a bonus, its small size makes it possible to move it outdoors for the summer and inside for the winter. You could also keep it inside year-round, but it doesn't feel logical to pay electric bills for grow lights when there's plenty of energy coming from that huge, flaming ball of hydrogen up in the sky.

Karuna Eberl for Family Handyman

Tools Required

1-1/4-in.; 1-1/2-in.; 1-3/4-in.; and 2-1/2-in. hole saws
3/4-in. paddle bit
Hand saw
Measuring tape
Miter saw
Permanent marker
Power drill
Reciprocating saw or any other saw that can cut PVC

Materials Required

(1) 1 ft. length of 1-in. PVC sched 40 pipe
(1) 10-piece package 3-in. net cups for hydroponics
(1) 10.2 oz. clear aquarium silicone sealant
(1) 27-gallon tough storage bin with lid (should not be solid color: not translucent)
(1) 4 oz. Gorilla Clear PVC Primaglue
(1) 4-in. square PVC fence post - 6 ft. long
(1) 50-piece package black plastic slotted mesh net plant cups for hydroponics
(1) Boshart 1-in. insert x 1-in. D MPT Polypropylene 90-degree elbow
(1) Boshart 1/2-in. insert x 1/2-in. D MPT Polypropylene 90-degree elbow
(1) Kedsum 660 gph submersible ultra-quiet water pump with 6-ft. lift height
(1) Lifeguard aquatics 1/2-in. double-threaded bulkhead
(1) Package Totalpond vinyl tubing: 1/2-in. diameter
(1) Plant nutrients
(1) PVC tube fitting: sched 40
(1) Sealproof 1-in.-diameter corrugated pond tubing: 20 ft. length
(1) Sheet of 120-grit sandpaper
(1) Sheet of 28 small plugs: 1.5-in. Rockwool starter plugs for hydroponics
(2) Charlotte pipe 1-in. sched 40 male adapter MPT x S pressure
(3) Lifeguard aquatics 1-in. double-threaded bulkheads
(4) 4-in. white vinyl pyramid-style fence post caps
90-degree elbow: 1-in. barbed x NPT male

Project step-by-step (13)

Step 1

Cut Your Fence Posts

Cut a 4-in. PVC Fence Post Into Two 36-in. Pieces
Be careful to cut the ends as straight as possible so the end caps fit tightly.
Also cut two 2-1/2-in. pieces of 1-in. schedule 40 pipe.

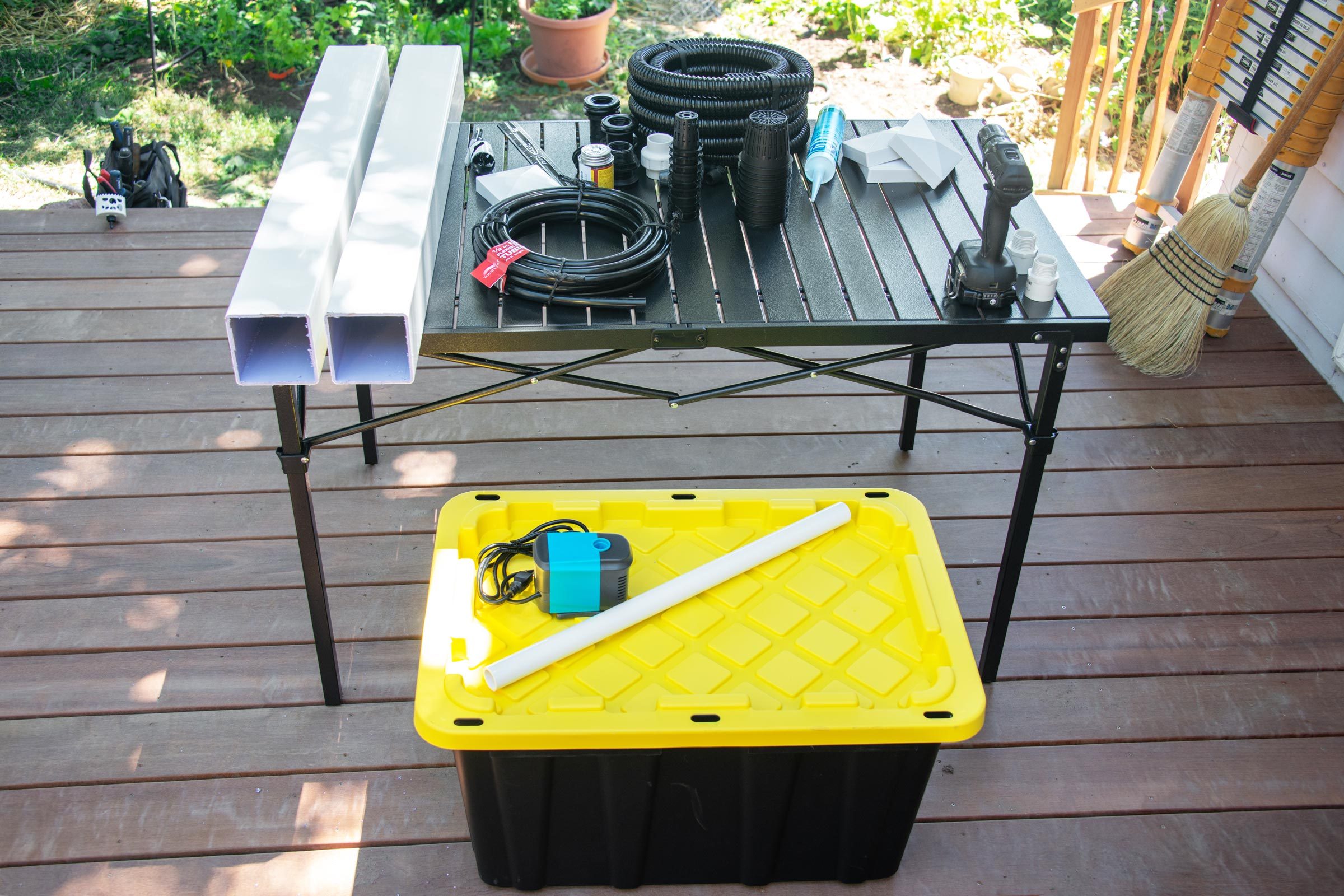

Fhm Step 1 Hydroponic Garden Karuna Eberl Hydrostep1a Jvedit — Karuna Eberl for Family Handyman

Step 2

Drill the Connection Holes

Drill the connection holes into your 4-in. PVC fence post sections.
Three of the holes have a 1-3/4-in. diameter and one hole has a 1-1/4-in. diameter. (See diagram below for hole locations.)

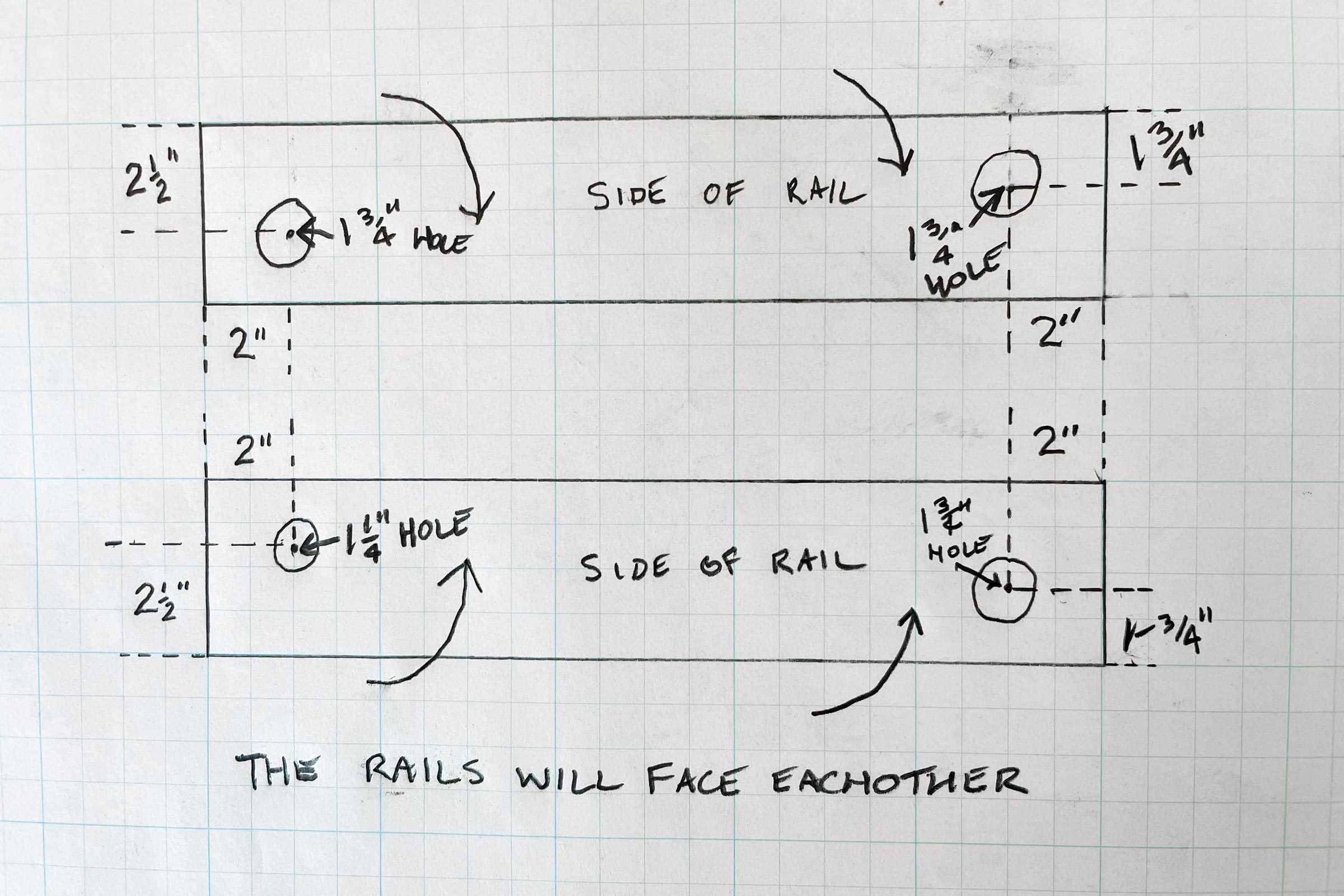

diagram drawn out on lined paper explaining where to drill holes — Karuna Eberl for Family Handyman

These will face each other on the inside vertical edges; they connect the two rails.
Pro tip: The hole saw may grab on the PVC when you begin to drill. Some people run the hole saw in reverse, but it depends on the saw’s teeth.

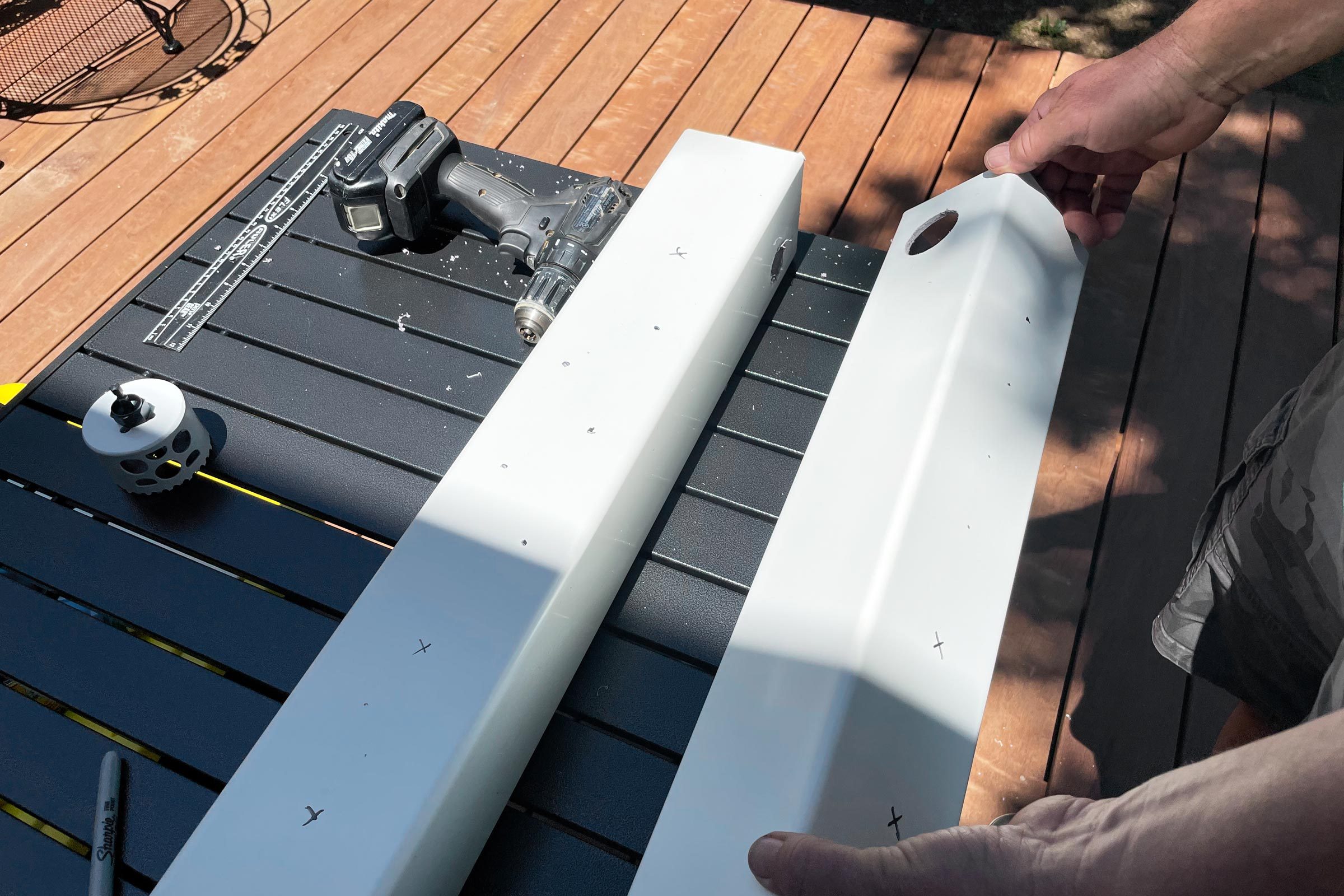

two rails on a black outdoor table with holes drilled — Karuna Eberl for Family Handyman

Step 3

Lay Out the Pattern for Your Plant Net Cups

Use a permanent marker to indicate the center for each hole.
Leave at least three inches from each end so you don’t interfere with the fittings to be installed later.

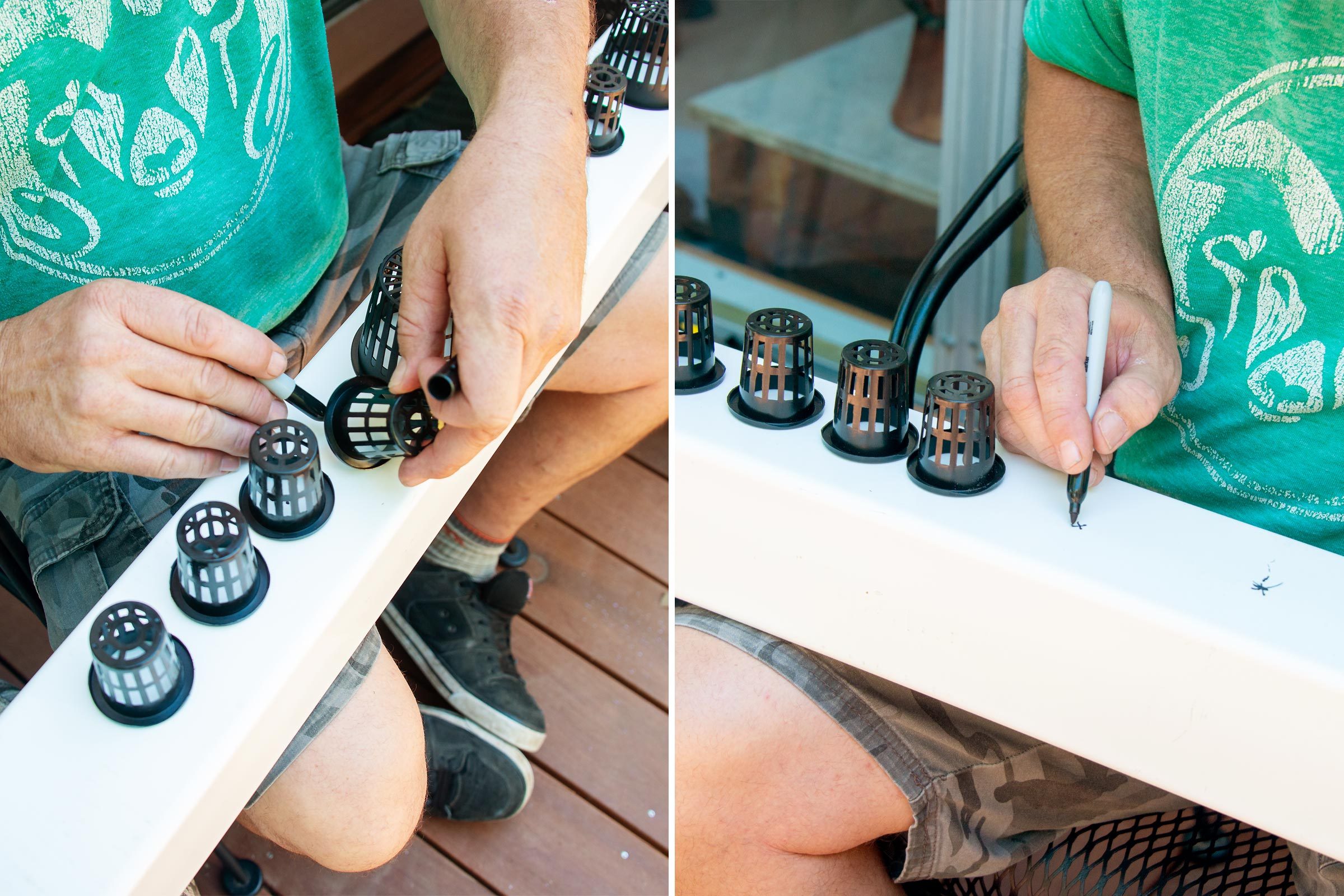

making a pattern with net cups and marking the center with a sharpie — Karuna Eberl for Family Handyman

Step 4

Drill Holes for Plant Net Cups

Drill these on the top sides of the rails.
Drill 1-1/2-in. holes for the small cups and 2-1/2-in. holes for the large cups.

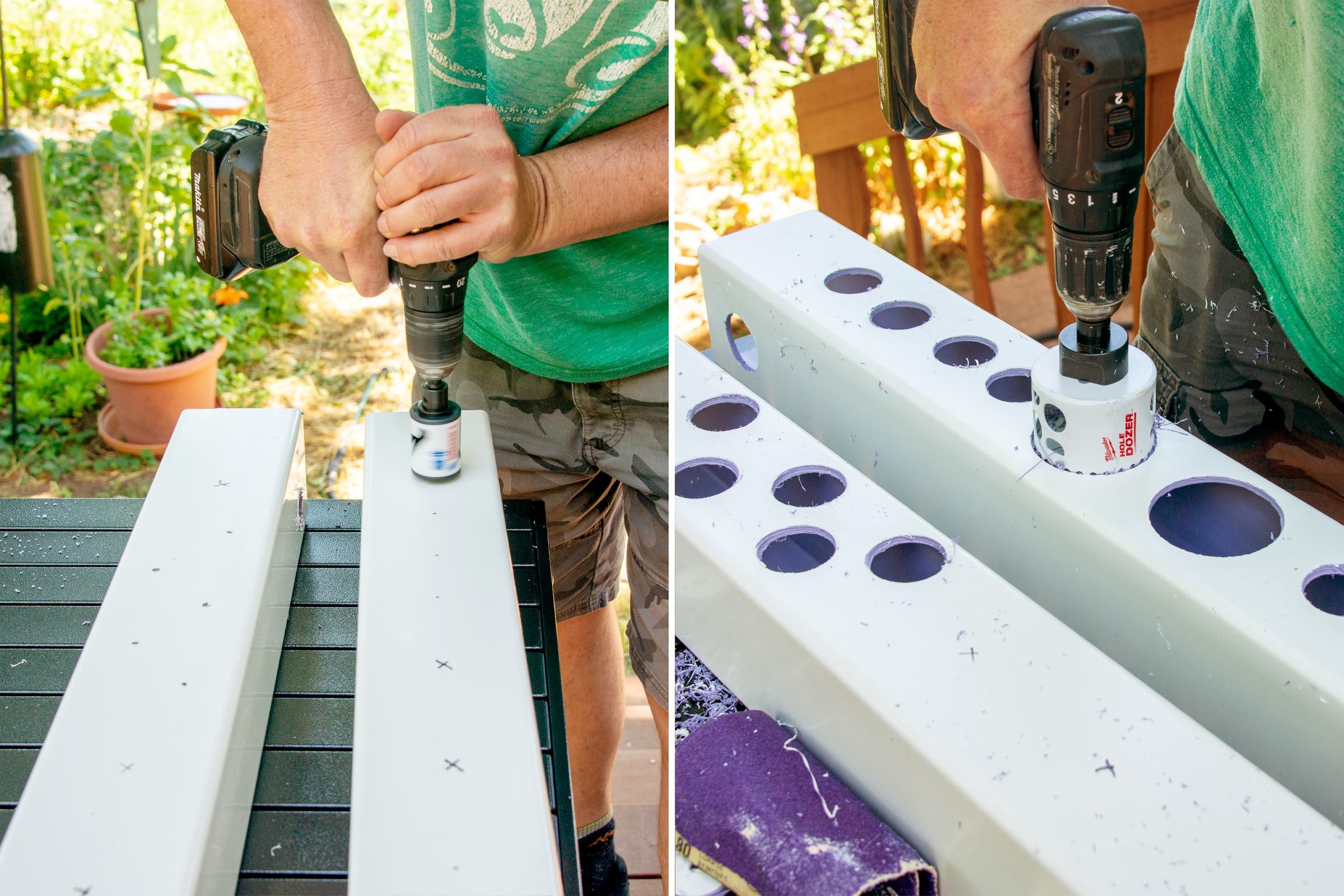

drilling large circular holes in the top — Karuna Eberl for Family Handyman

After drilling the holes, use the sandpaper to smooth away loose PVC from the openings.
This makes a formidable mess, so have the broom handy.
Pro tip: Smaller net cups are good for shorter-term plants like lettuce, while larger ones are good for longer-term plants like peppers and strawberries.

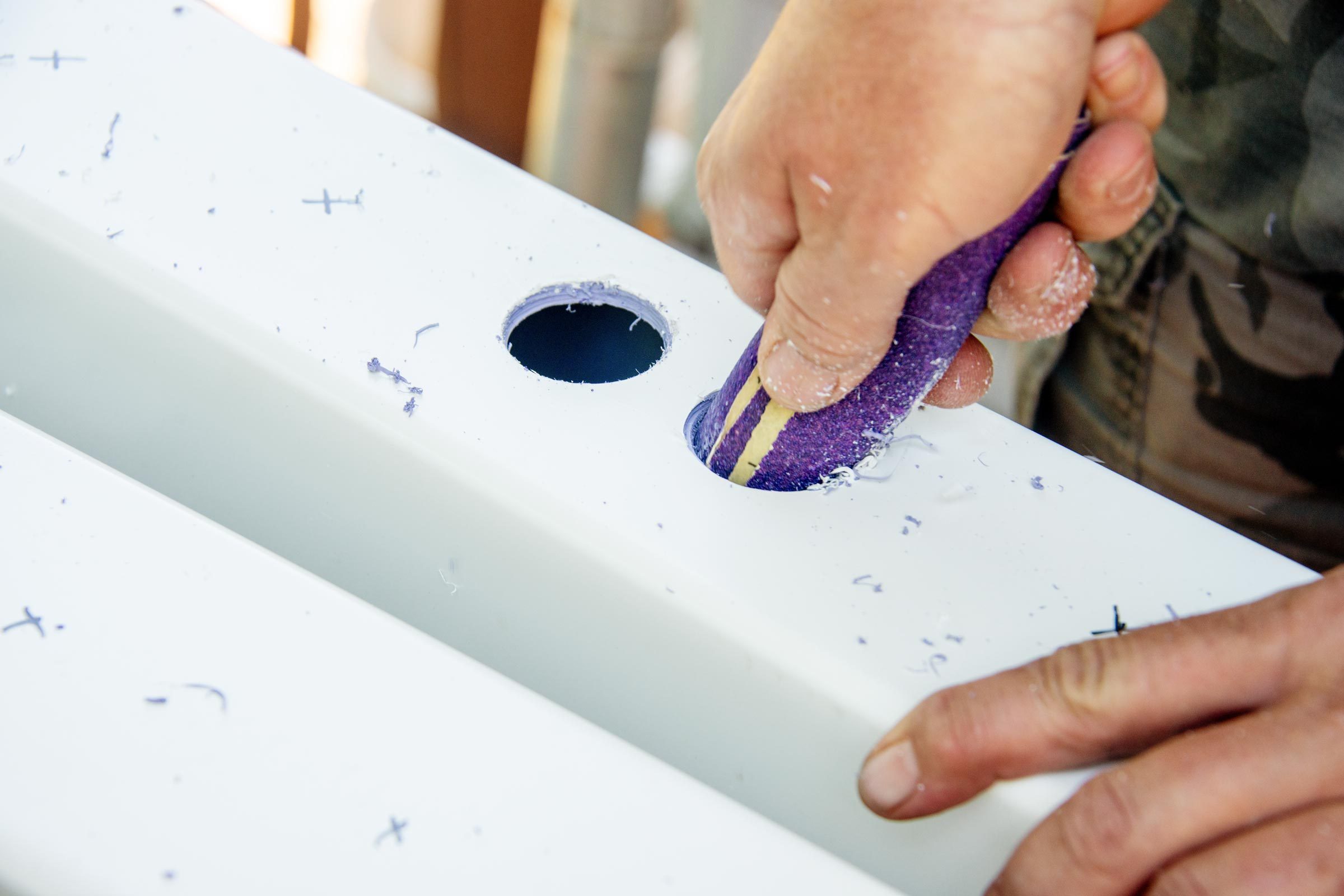

smoothing out the rough edges of the drilled holes with sandpaper — Karuna Eberl for Family Handyman

Step 5

Glue the Rail Connection Fittings

Assemble the fittings and 1-ft. PVC lengths in the order shown in the photo below (union fitting and adaptors).

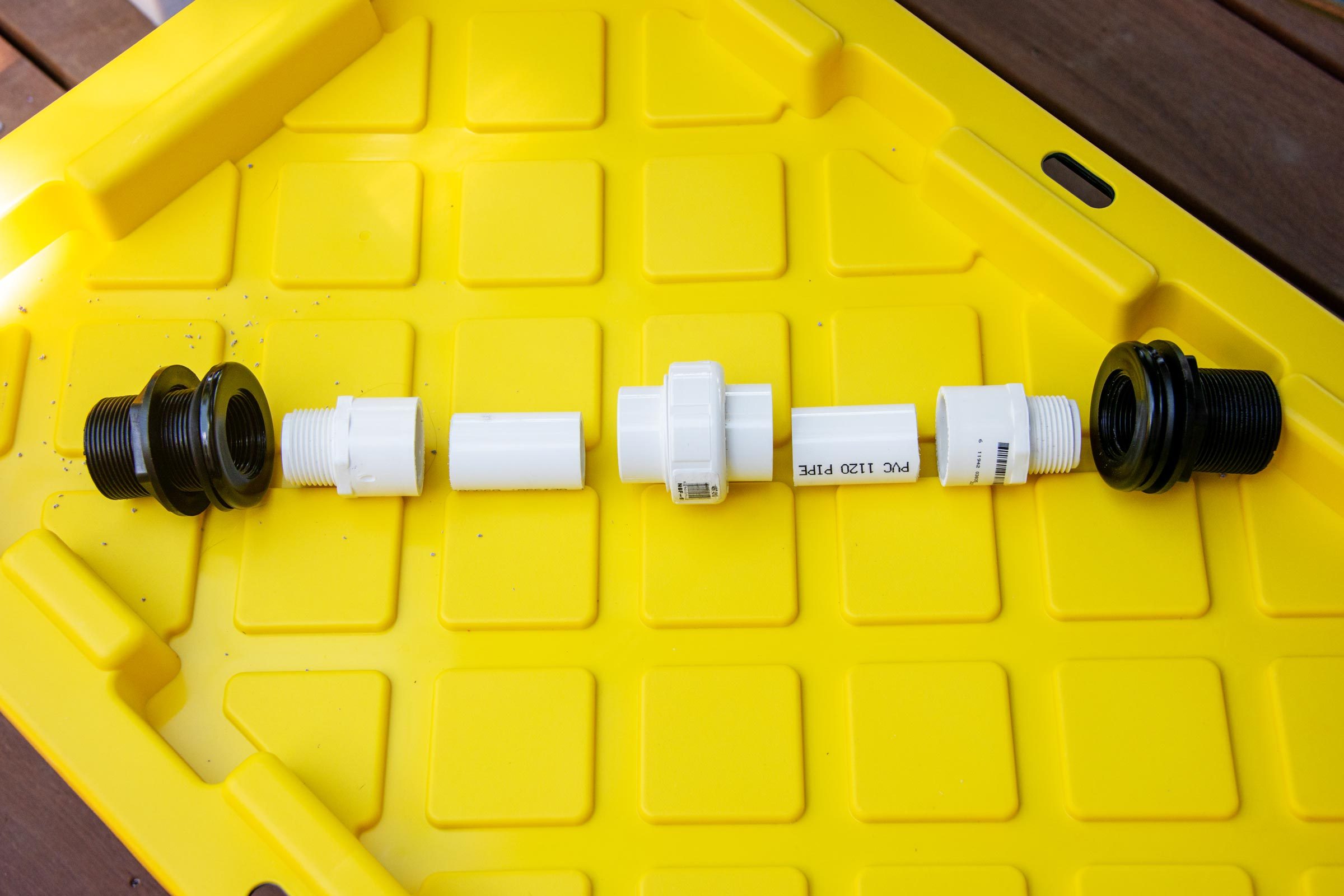

pvc pipe order — Karuna Eberl for Family Handyman

Apply the glue to the inside of the receiving fitting and the outside of the inserting fitting.
Push the pieces together while giving them a slight twist, about one quarter turn. Hold pressure for 30 to 45 seconds, or until the fittings don’t push apart.

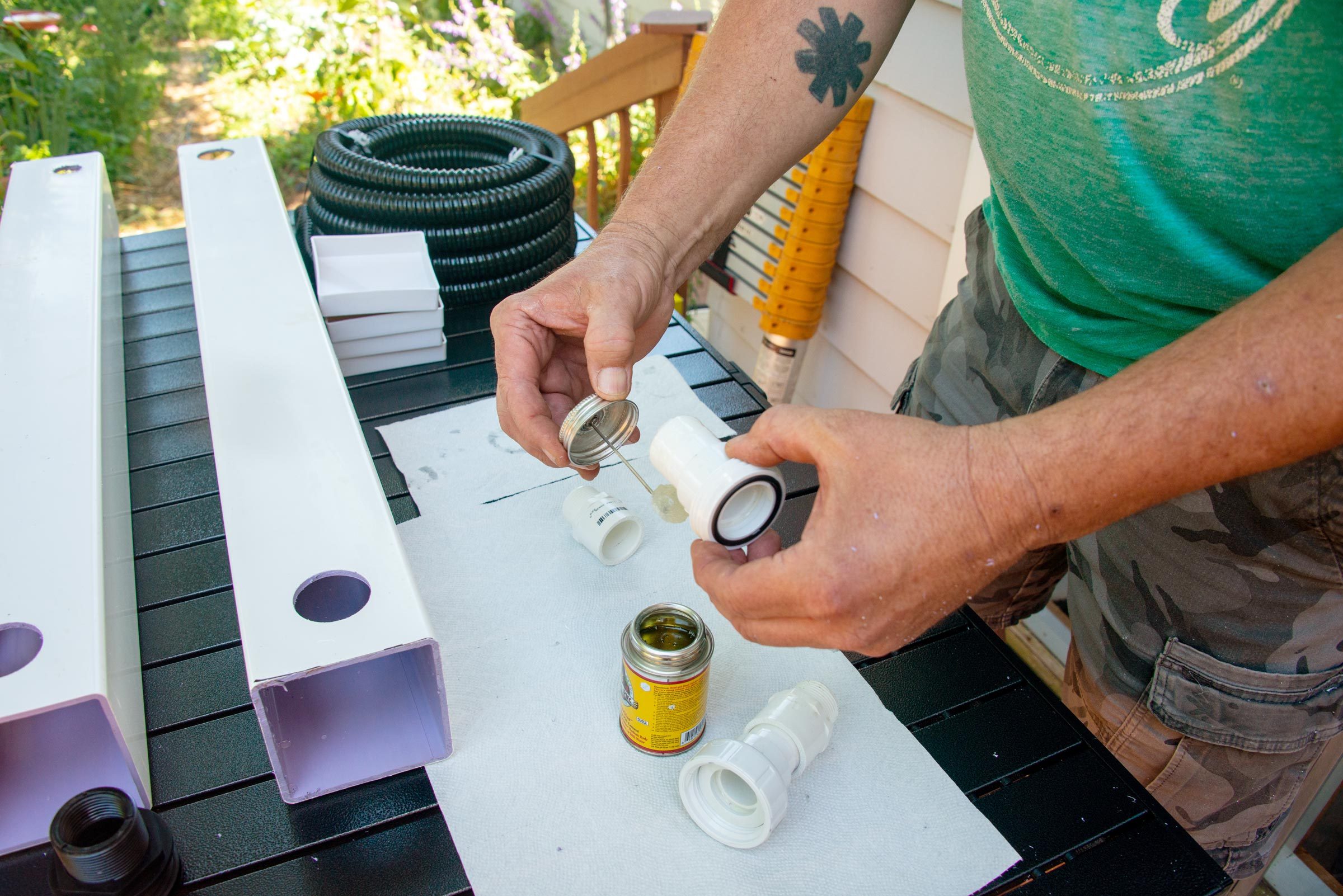

glueing together the union fittings with rubber cement — Karuna Eberl for Family Handyman

Step 6

Insert the Bulkhead Fittings

These are the bulkhead fittings: 1-in. fitting and 1/2-in. fitting.

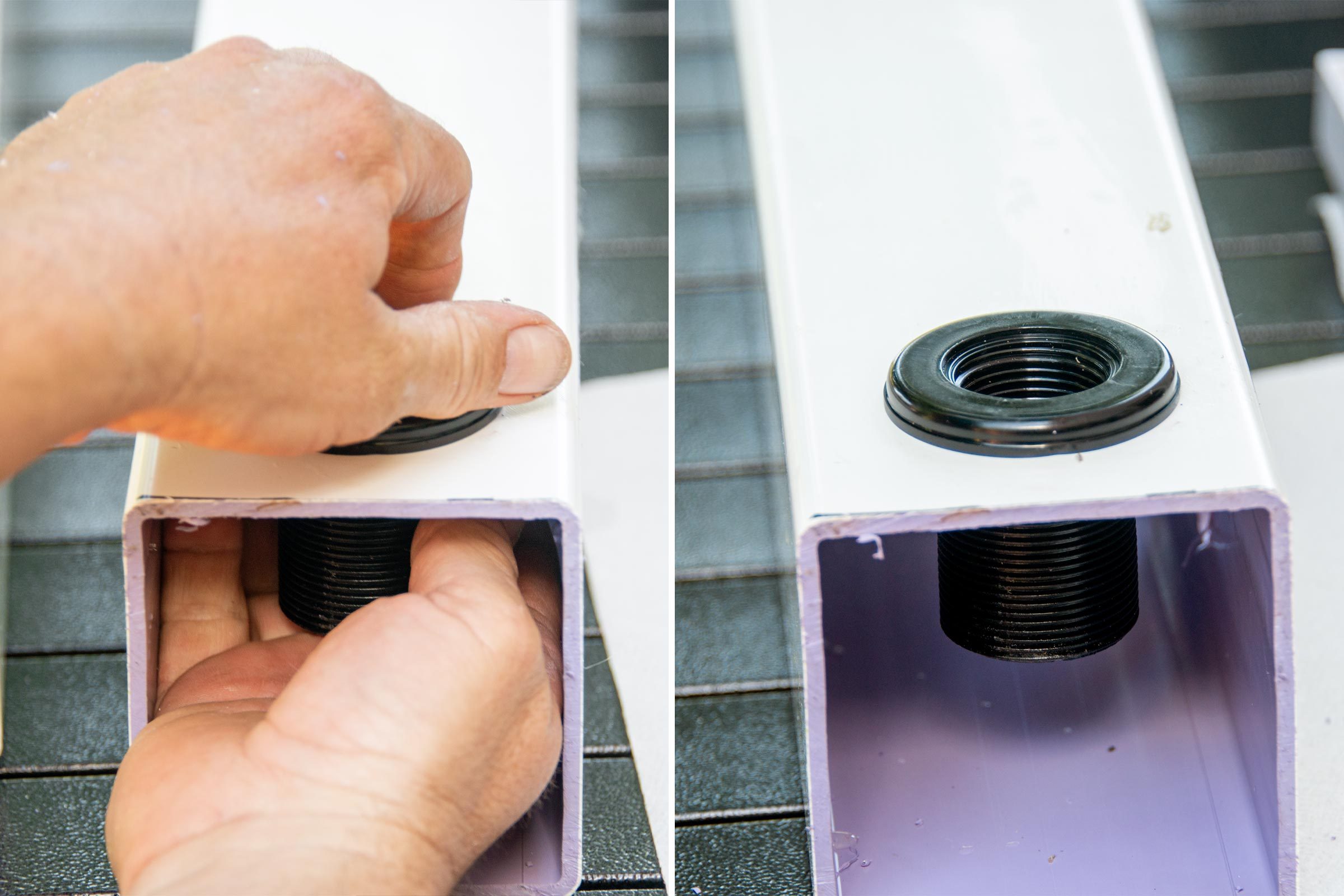

inserting bulkhead fittings into the holes — Karuna Eberl for Family Handyman

These go into the connection holes you drilled in Step 3.
The threads go inside the 4-in. PVC fence post. The gasket seal goes on the outside.
Tighten the nut onto the threads until the fitting is tight.

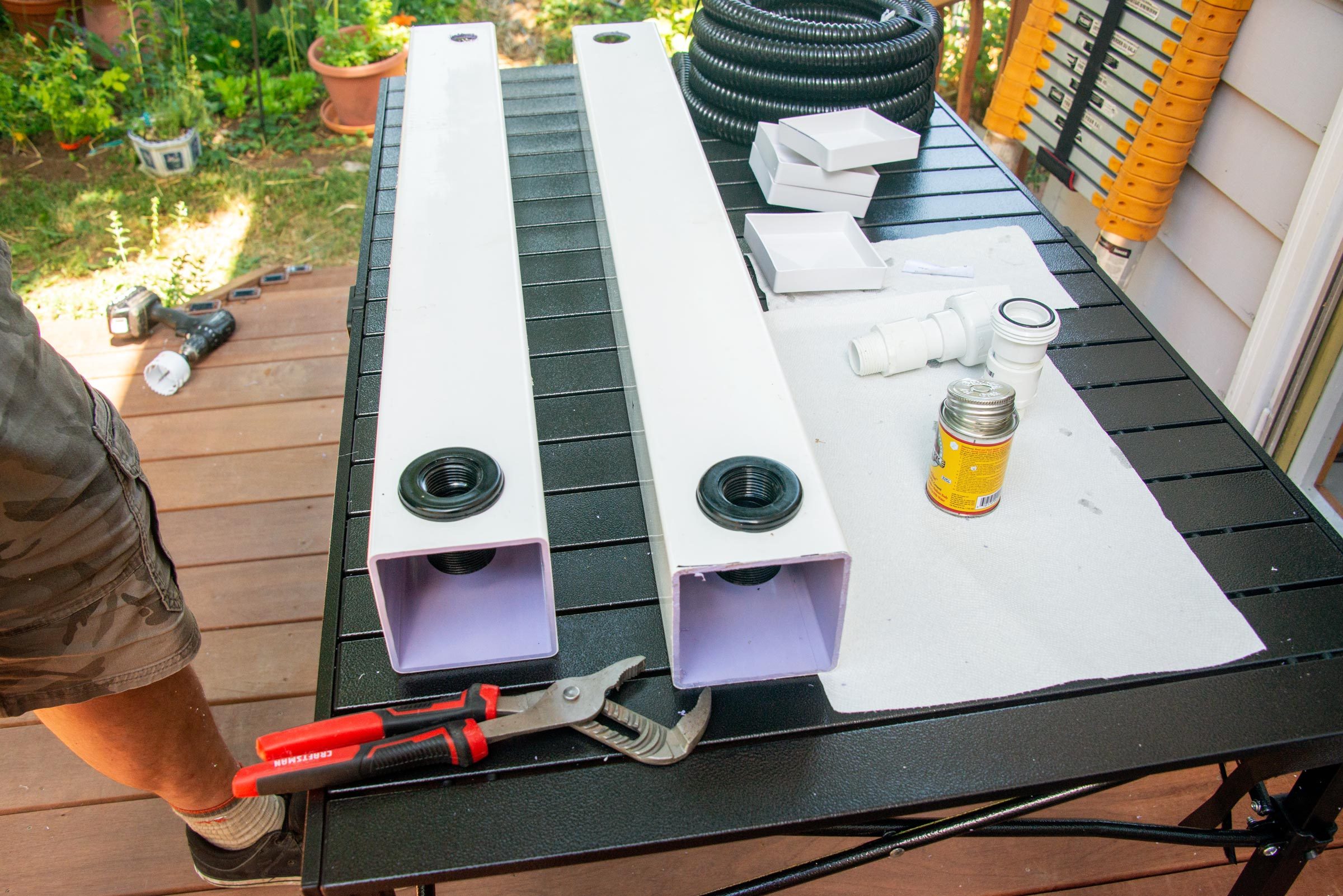

two bulk head fittings at the ends of two rails — Karuna Eberl for Family Handyman

Step 7

Insert the Connection Fittings and Elbows

Insert the 1/2-in. elbow into the 1/2-in. bulkhead fitting.
Insert the 1-in. elbow into the 1-in. bulkhead fitting directly across from the 1/2-in. fitting.
Angle these elbows downward at a 45-degree angle, since they’re the connections to the water reservoir.

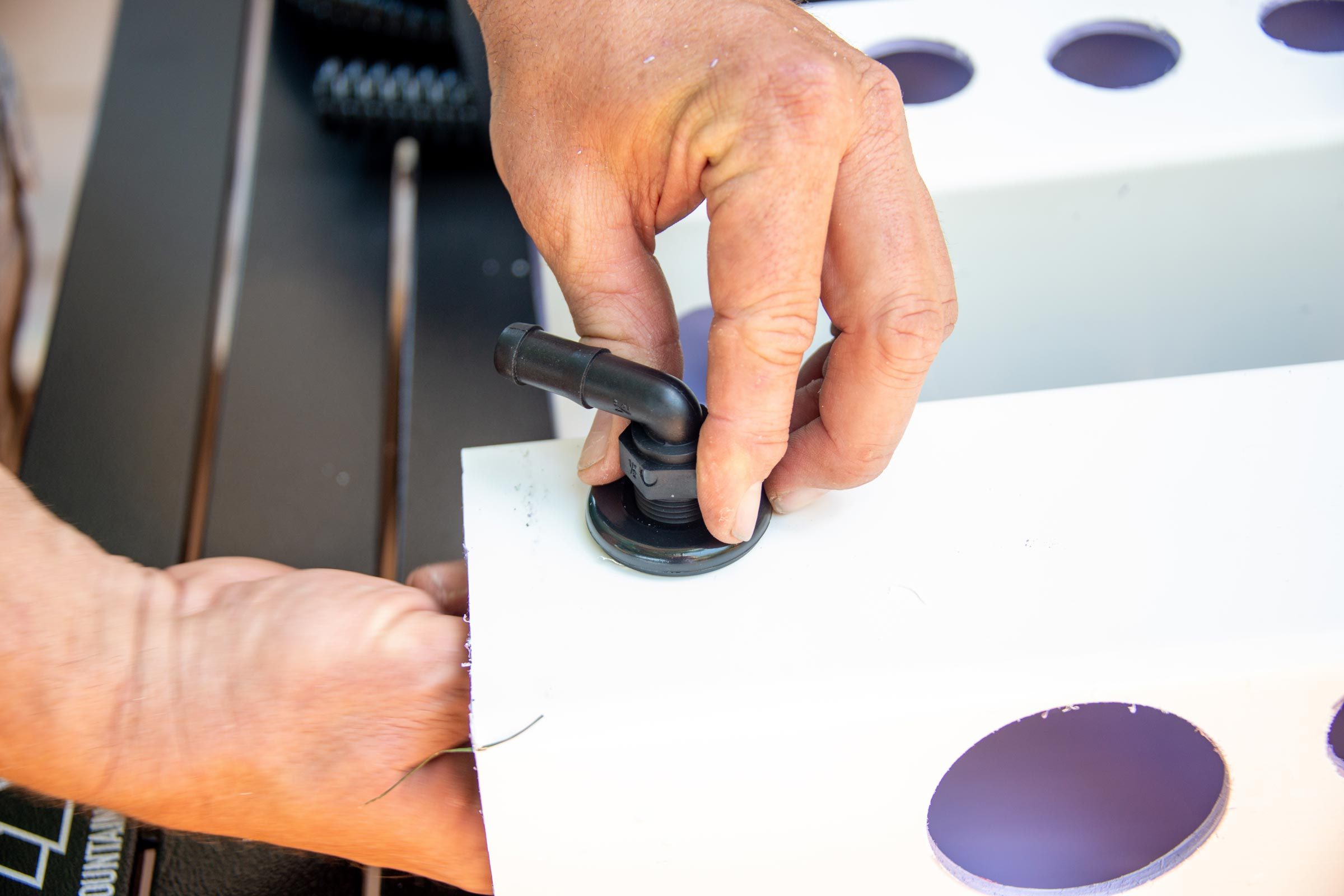

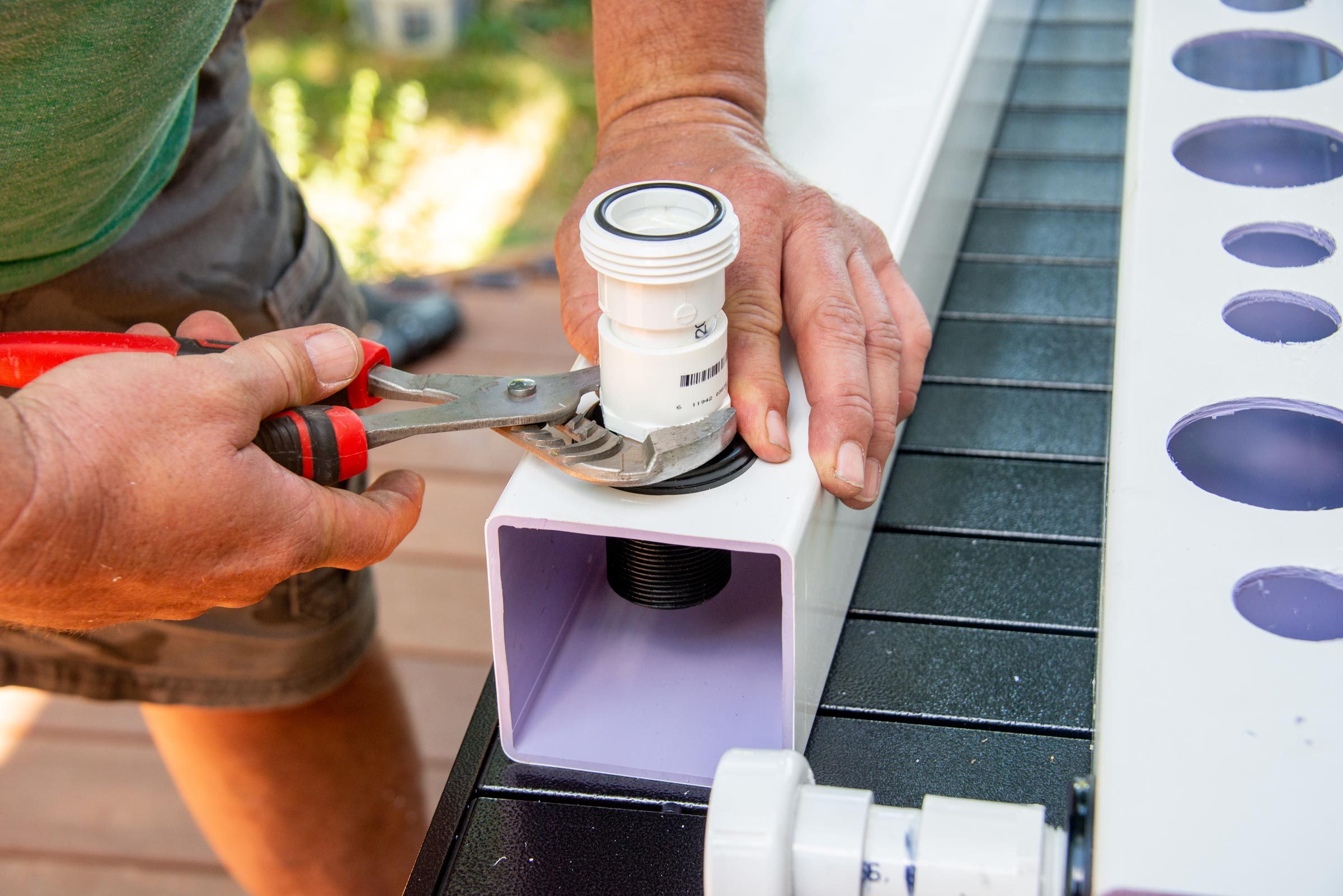

inserting the elbow into the bulk head fitting — Karuna Eberl for Family Handyman

Unscrew the union connection and thread each half of the connection fittings into the remaining two bulkhead fittings.

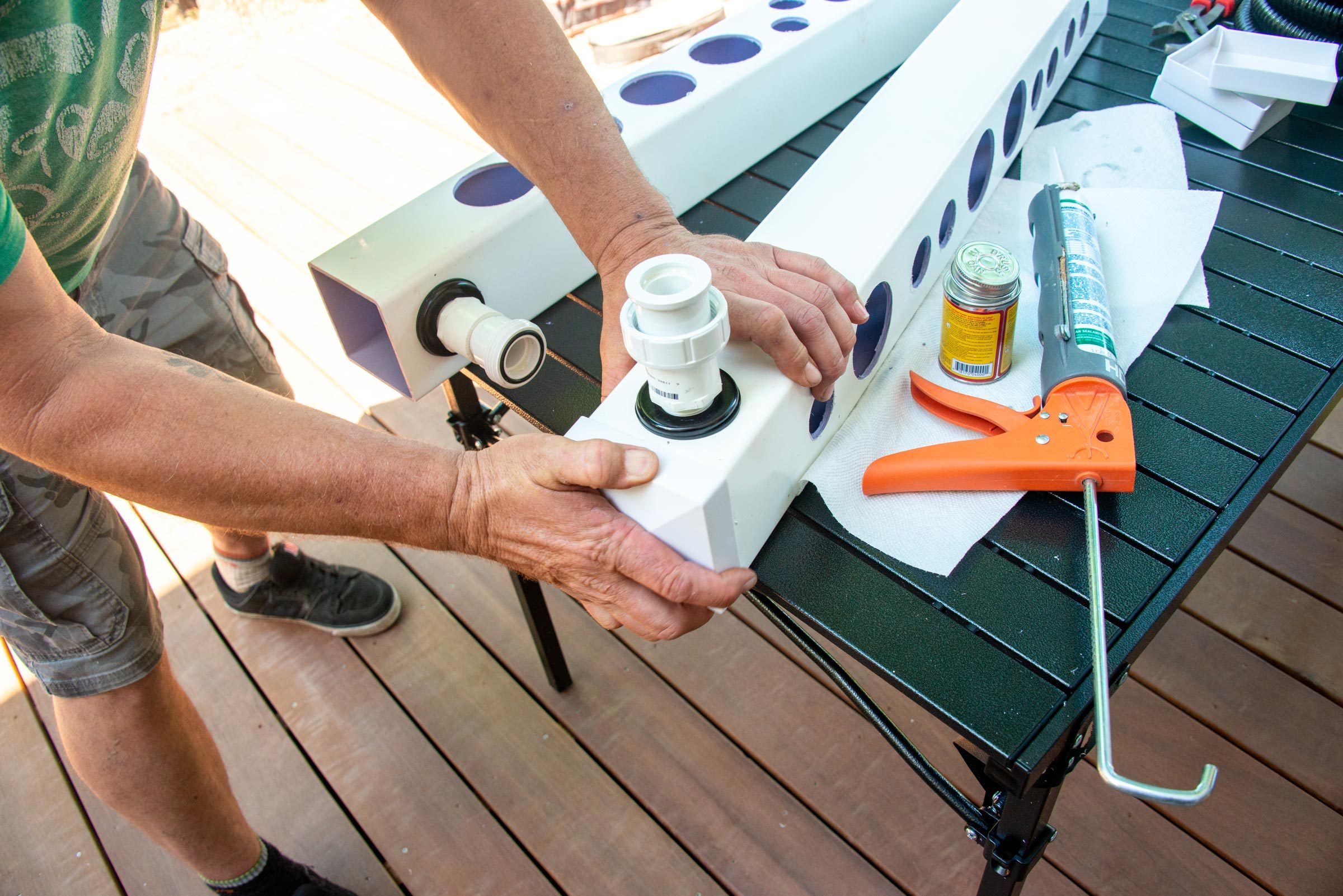

screwing the union fitting into the bulk head at the other end — Karuna Eberl for Family Handyman

Step 8

Seal and Glue End Caps

Apply the silicone sealant to the inside of each end cap along the entire perimeter.
Apply extra silicone in the corners, which are more prone to leaking.

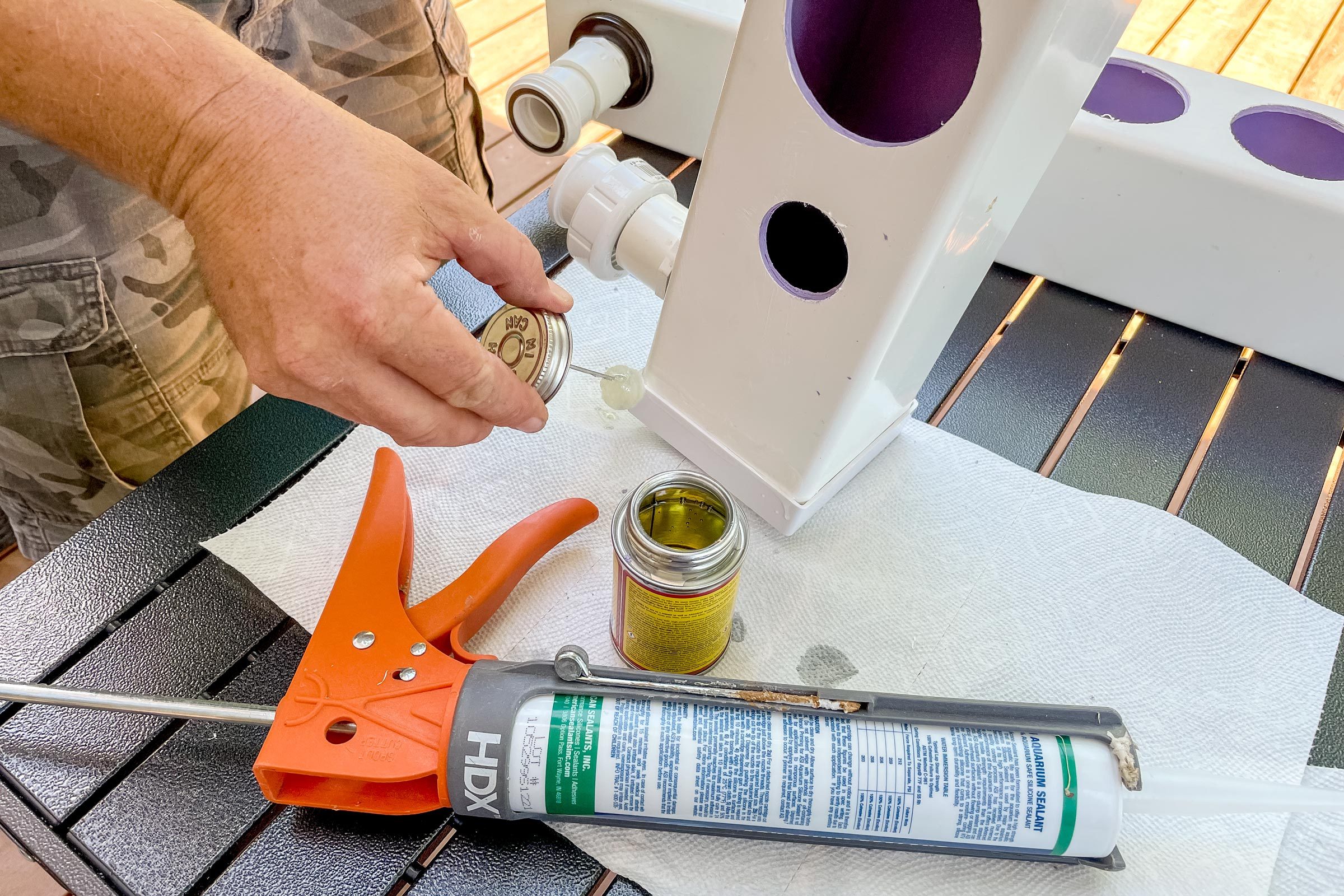

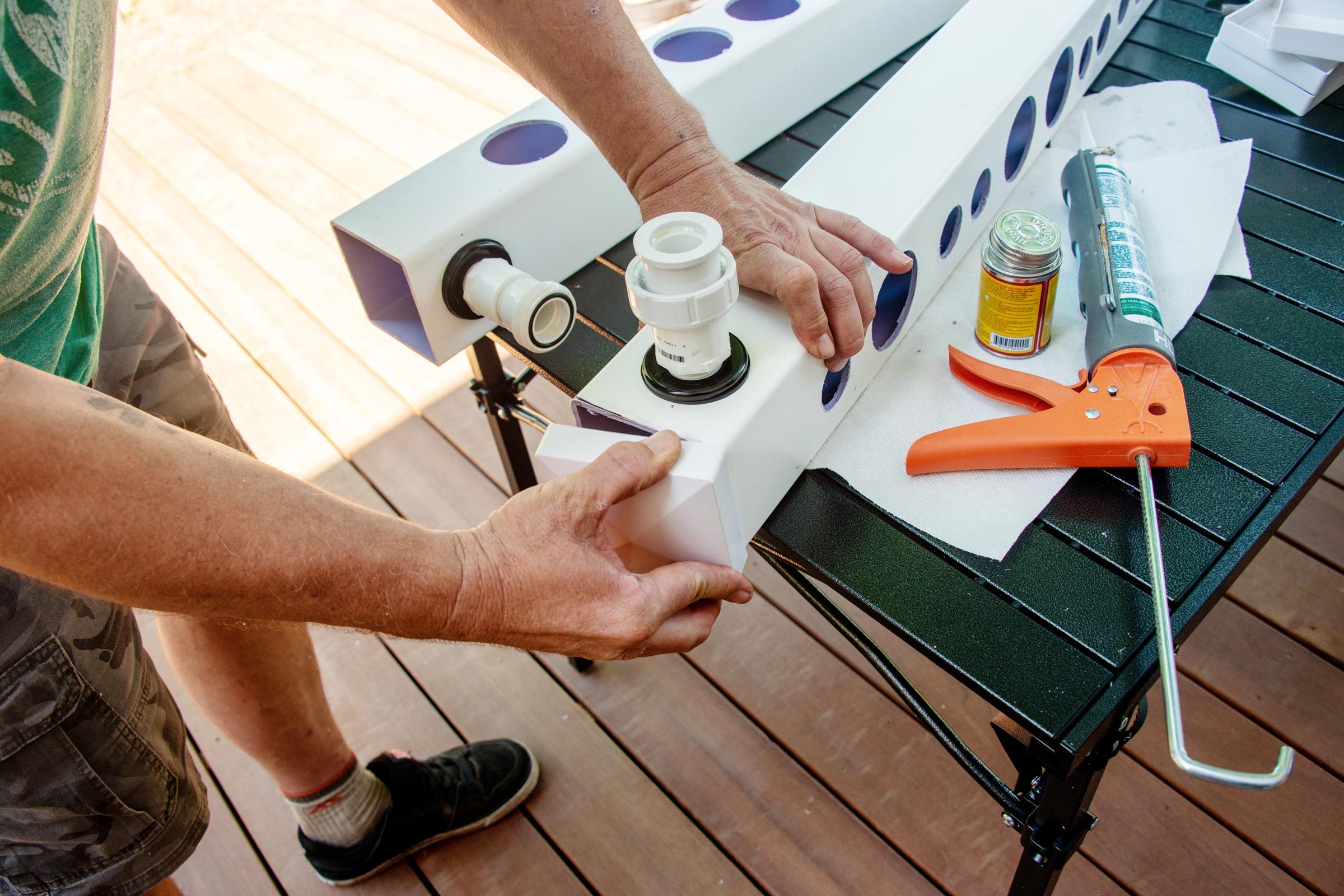

using silicone sealant to glue on the end caps — Karuna Eberl for Family Handyman

After applying the silicone, apply PVC glue along the inside edge of the cap, adjacent to the silicone.
Apply glue to the outside of the post.
Push the end cap in place and hold for 30 to 45 seconds, or until the cap doesn’t push away from the rail.

pushing on the end cap in place and holding so the sealant adheres

After the caps are set, look at the exterior connections in the corners. If there’s a small space in the corner, apply some glue to fill the gap to insure a watertight seal.

sealing around the outside of the end cap to prevent any gaps — Karuna Eberl for Family Handyman

Step 9

Connect Rails

Place your rails next to each other with the union fittings aligning with the other half.
Tighten the union fitting as much as you can with your hands.

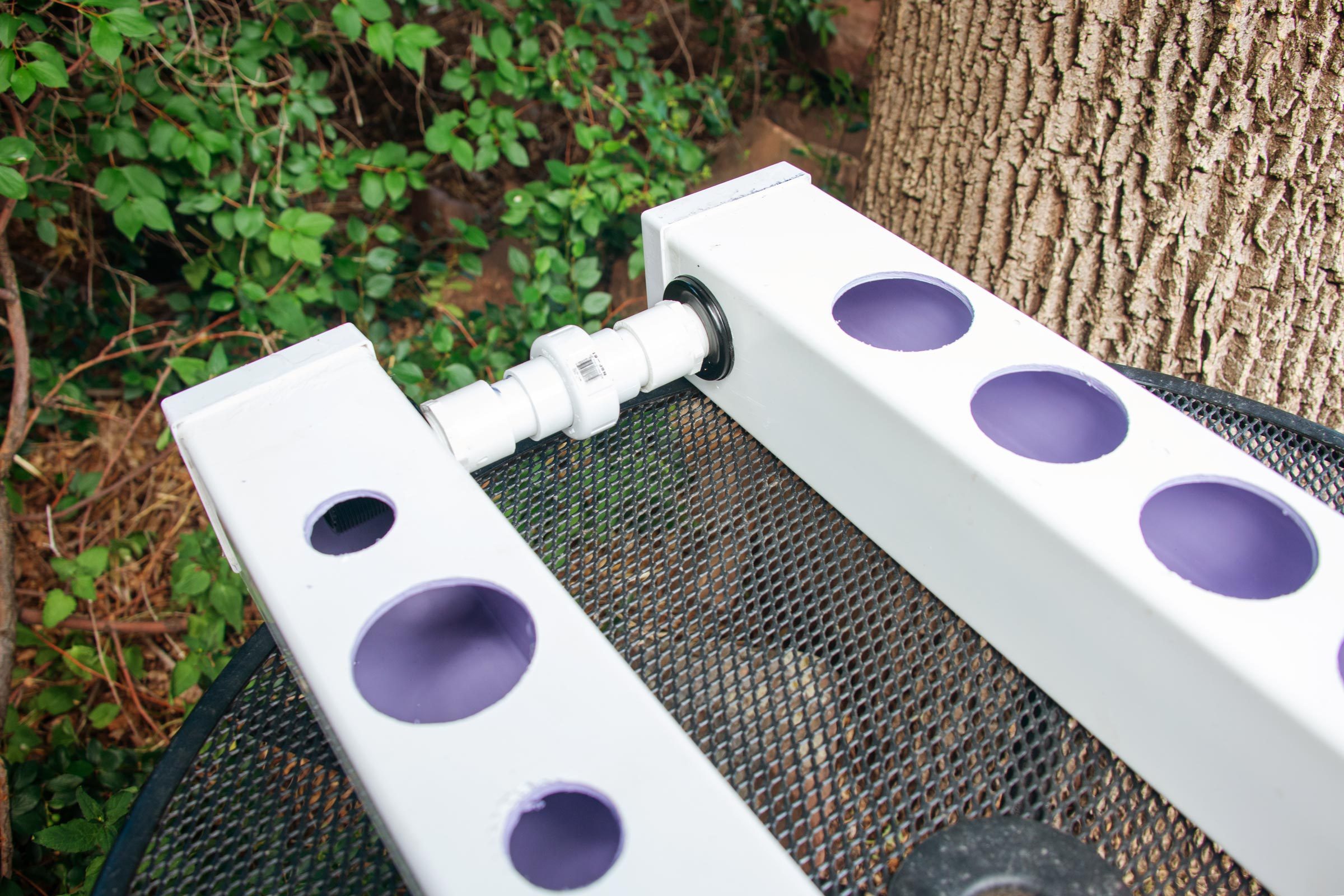

two of the rails connected together with the union fittings

Step 10

Prepare Water Reservoir

Drill a 1-1/4-in. hole through the lid for the outflow tubing.

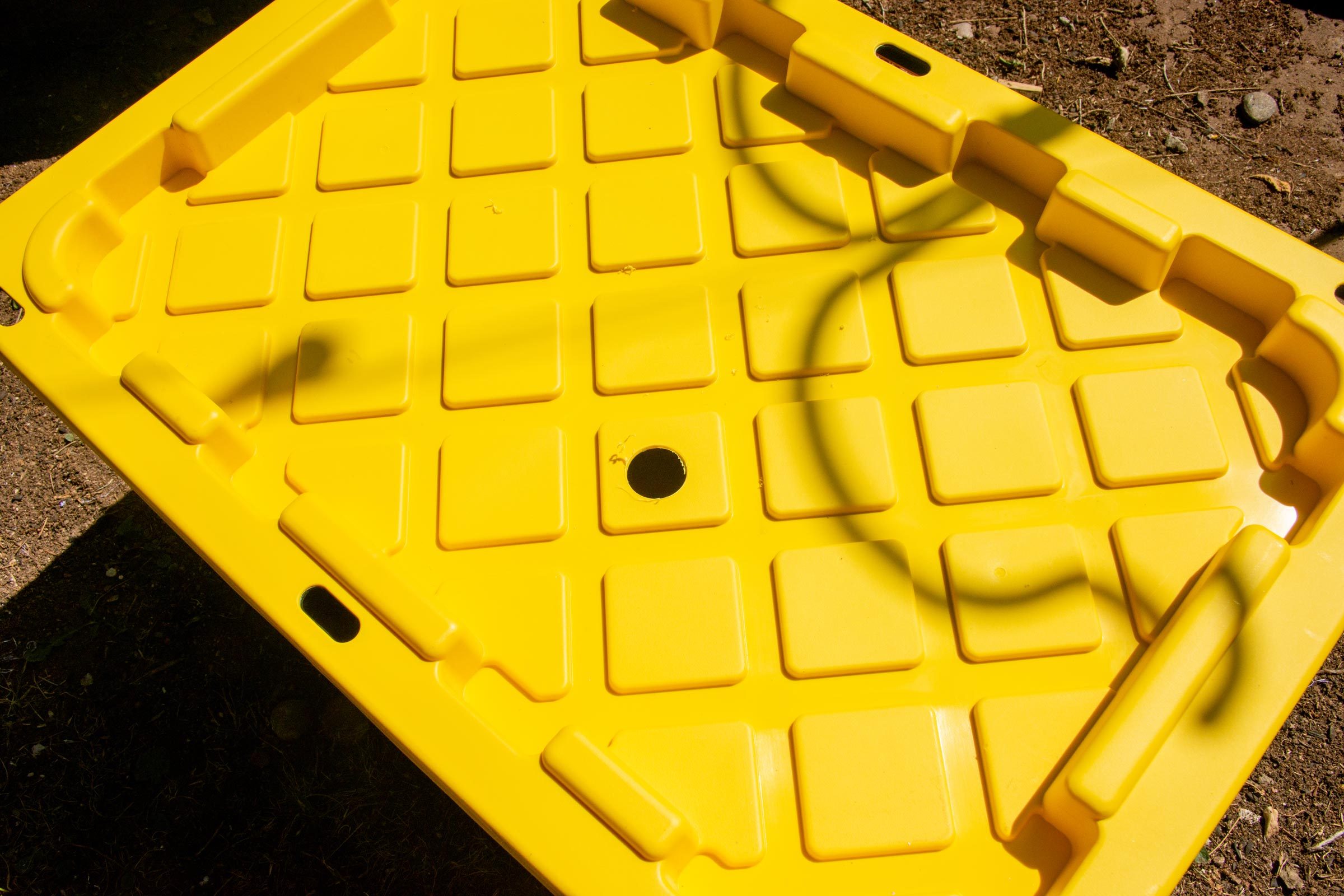

a round hole drilled in the yellow lid of a plastic tote — Karuna Eberl for Family Handyman

Drill a 3/4-in. hole through the side of the reservoir near to the top of the sidewall. This is the hole for the inflow water line that will connect to the water pump.
Drill another 3/4-in. hole next to the inflow water line. That’s for the cord to pass through.

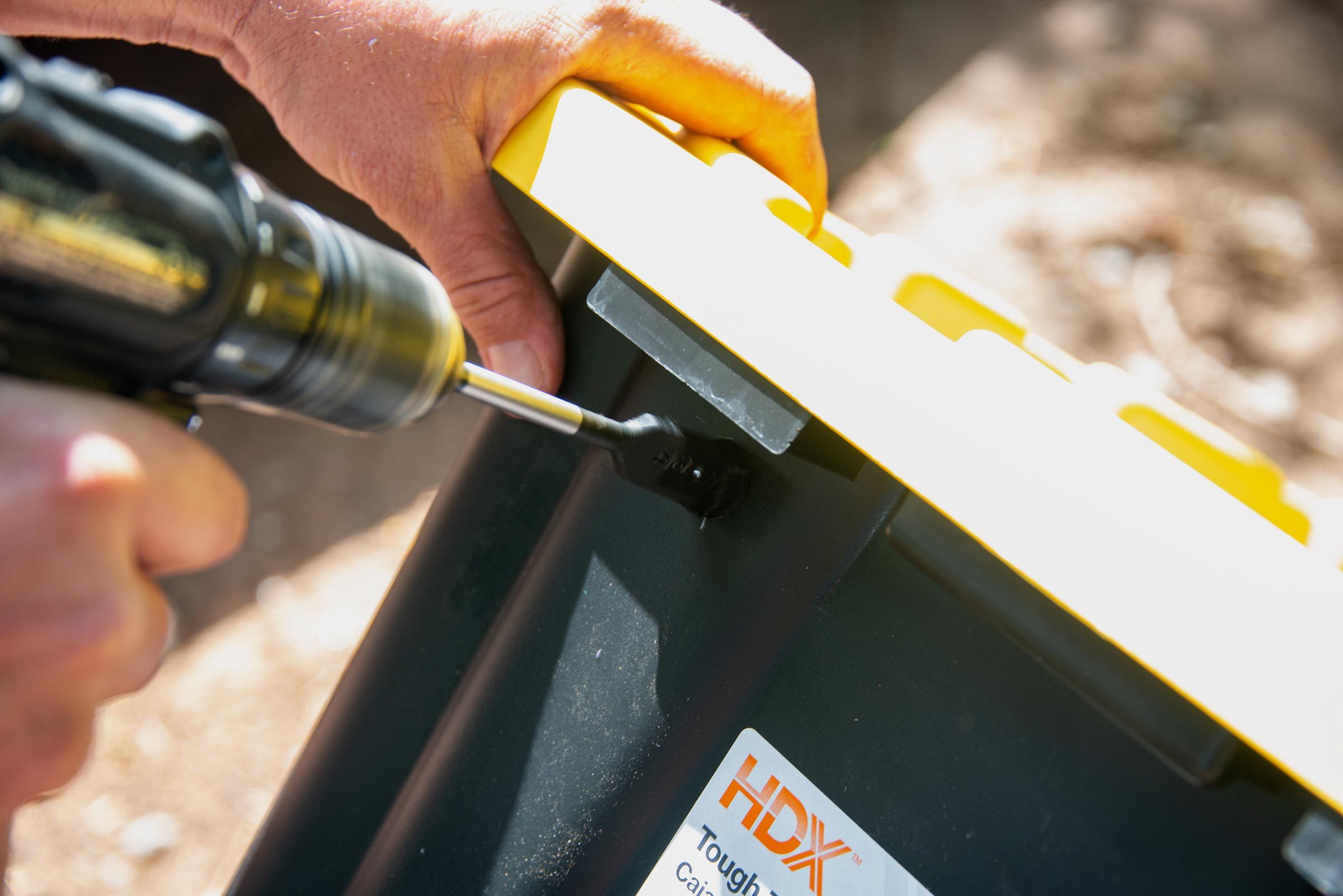

drilling a smaller whole in the side of the plastic tote — Karuna Eberl for Family Handyman

Place the water pump in the center of the reservoir and route the cord out of the 3/4-in. hole next to the inflow tubing hole.

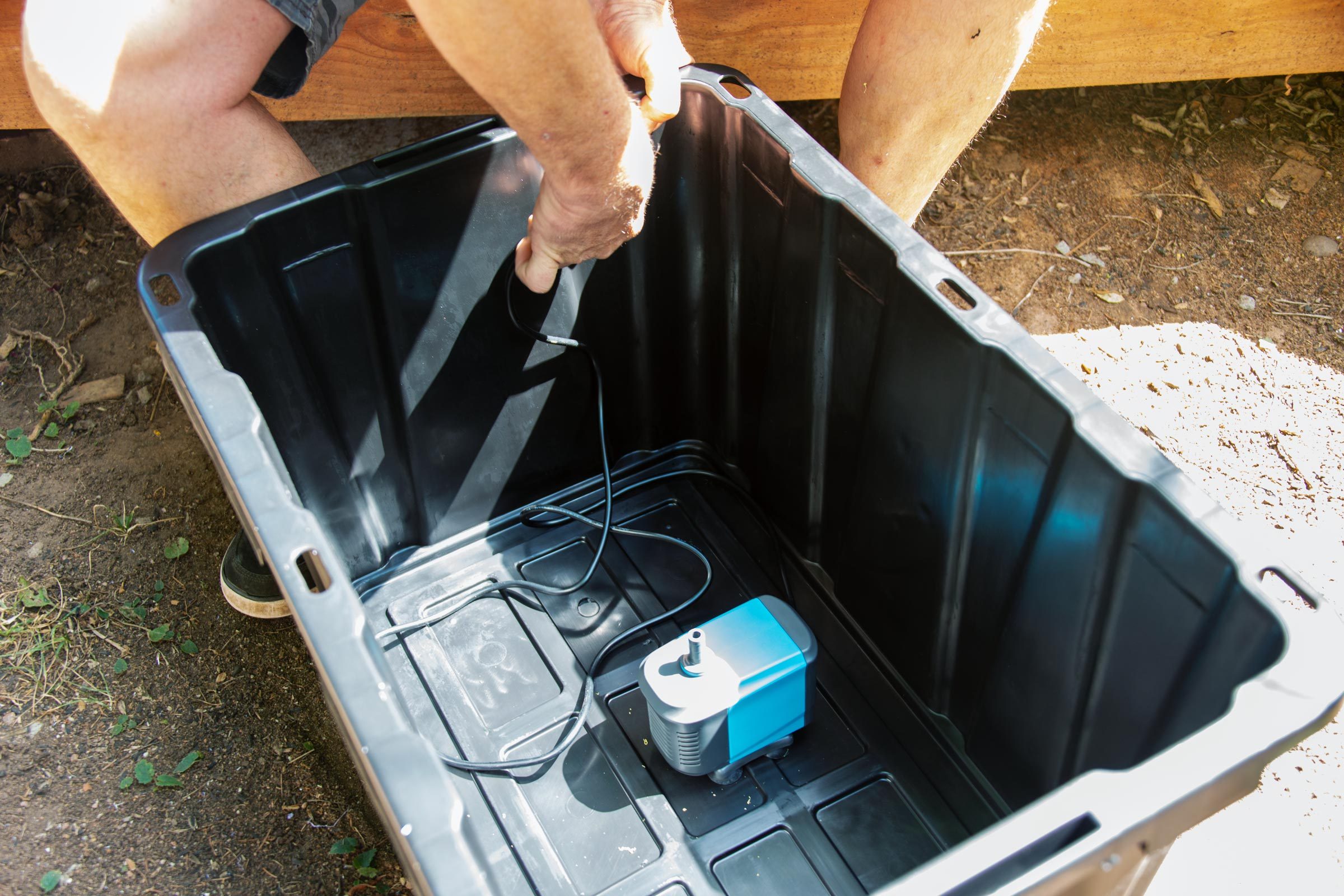

hands placing the water pump at the bottom of the tote and feeding the cord out through the drilled hole in the side — Karuna Eberl for Family Handyman

Step 11

Attach Inflow and Outflow Tubing

Push the corrugated tubing onto the 1-in. elbow barb.

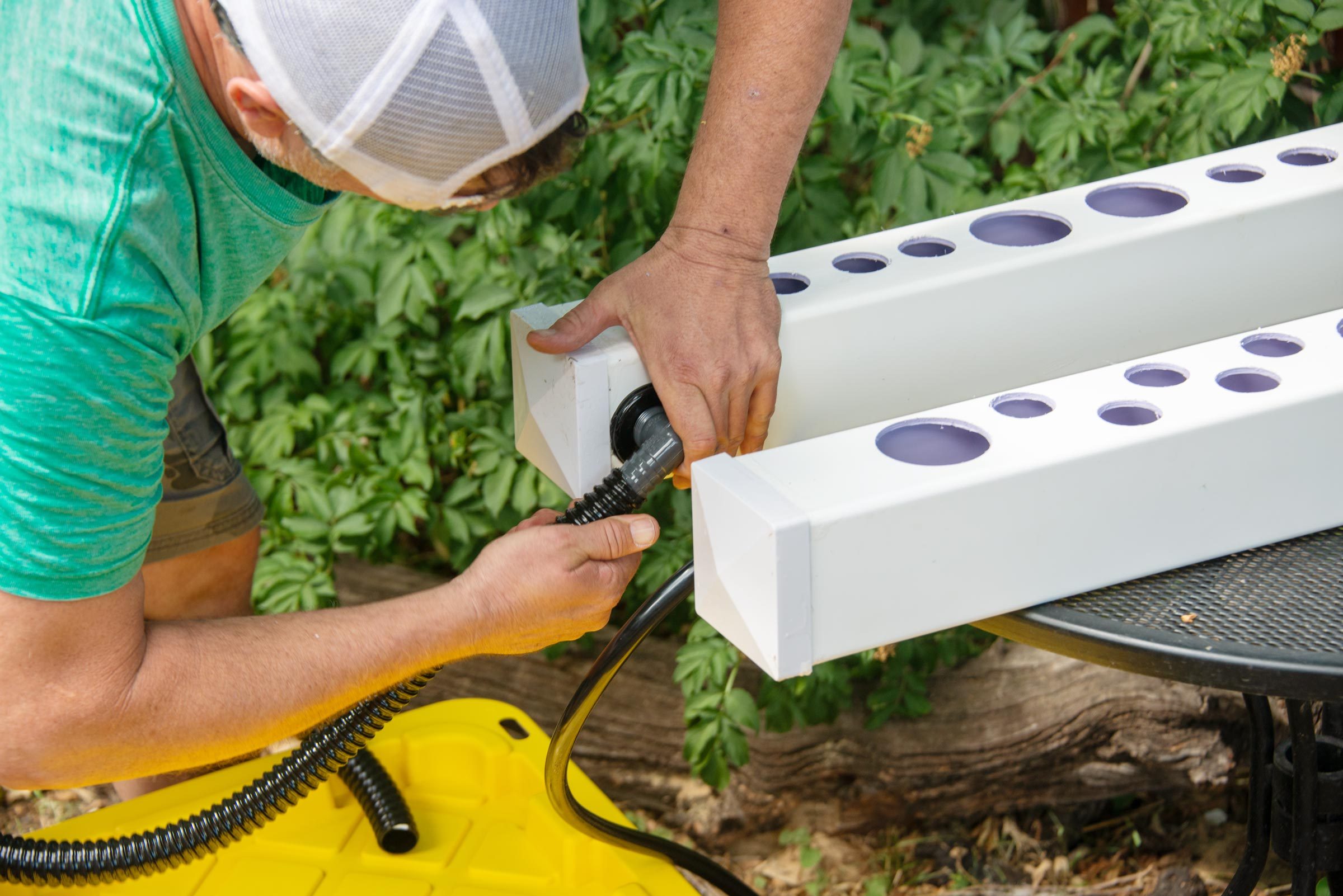

a man connecting the tubing to the elbow on the side of the rail — Karuna Eberl for Family Handyman

Route the 1-in. corrugated tubing through the top of the reservoir in the 1-1/4-in. hole.
Leave about eight inches in the reservoir and cut off the remaining length.
Push the inflow 1/2-in. tubing onto the elbow barb and route through the 3/4-in. hole in the side next to the cord.
Cut to appropriate length. Push the inflow tubing onto the pump barb until it is fully seated.

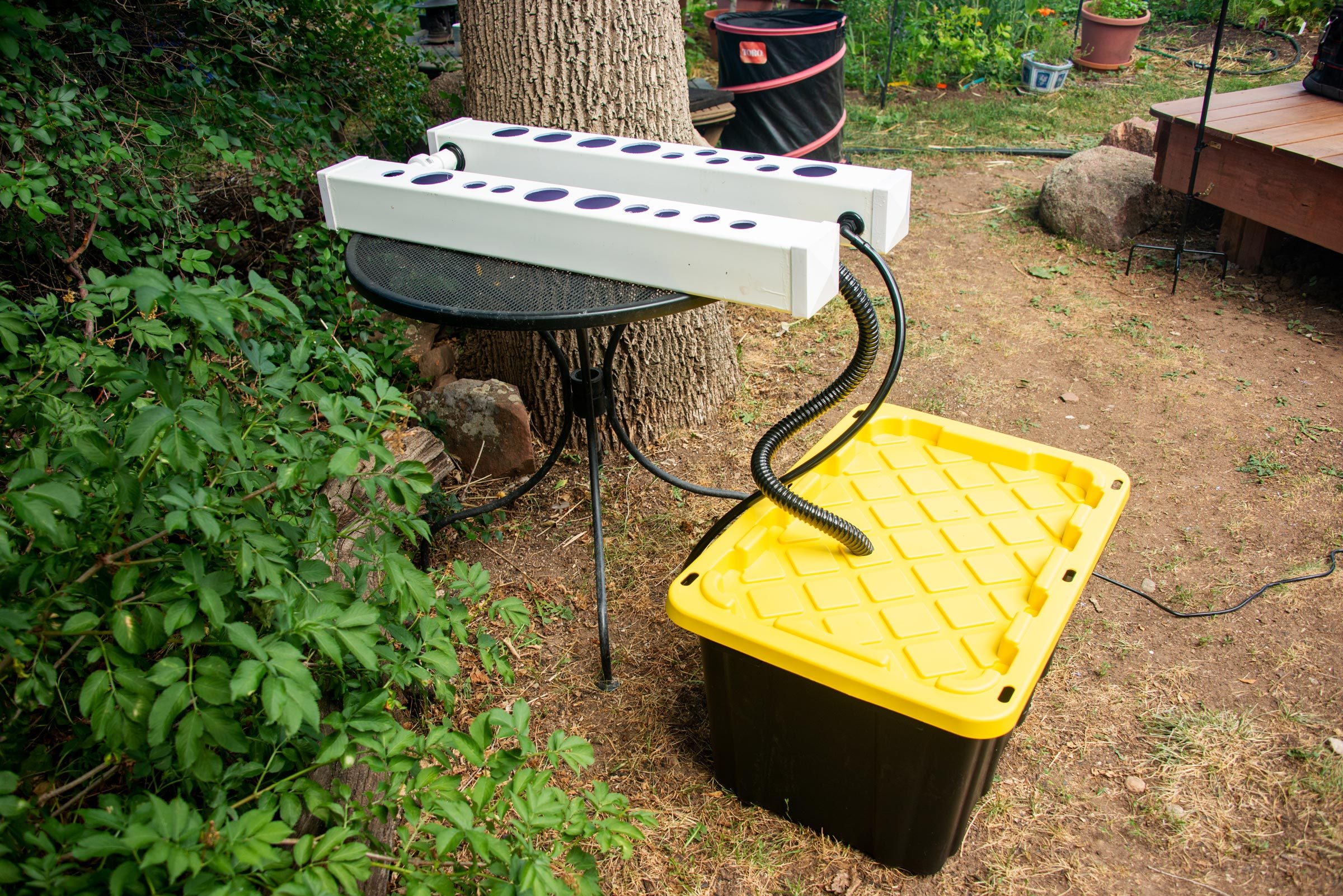

the rails and the plastic bin reservoir connected together with a black corrugated hose — Karuna Eberl for Family Handyman

Fill the water reservoir to approximately three-quarters full.
Add nutrients according to the manufacturer’s instructions.

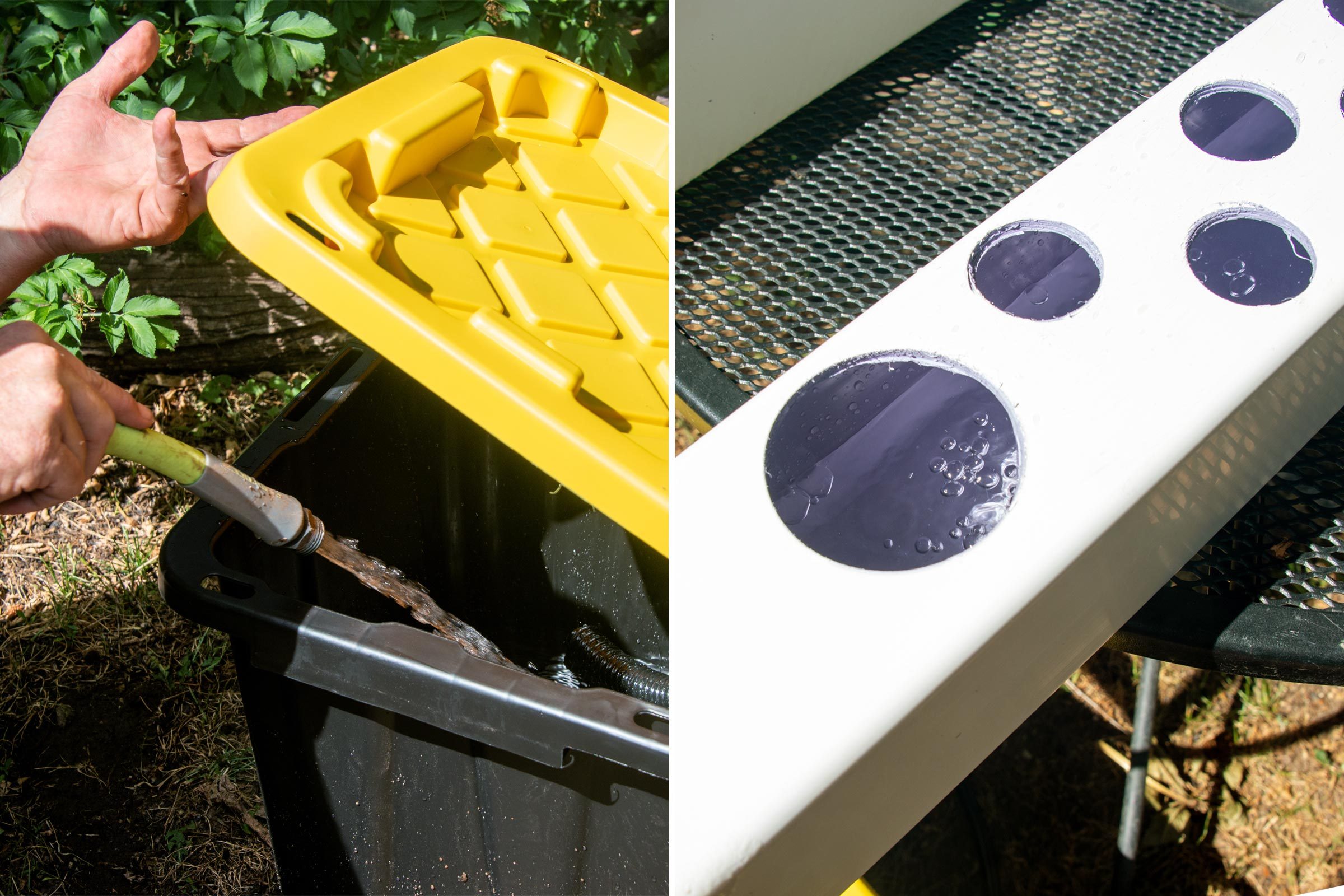

hands filling the plastic tote reservoir with water side by side another image showing the rails filling with water from the reservoir — Karuna Eberl for Family Handyman

Step 12

Prepare Net Cups

You can use seeds, seedlings or starter plants from a nursery.
If your plants came in soil, remove as much of it as you can from the roots before inserting them into the Rockwool.

strawberry plant planted in rock wool and inserted into the small net cup — Karuna Eberl for Family Handyman

Step 13

Finish It Up

Plug the pump into a wall receptacle or extension cord.

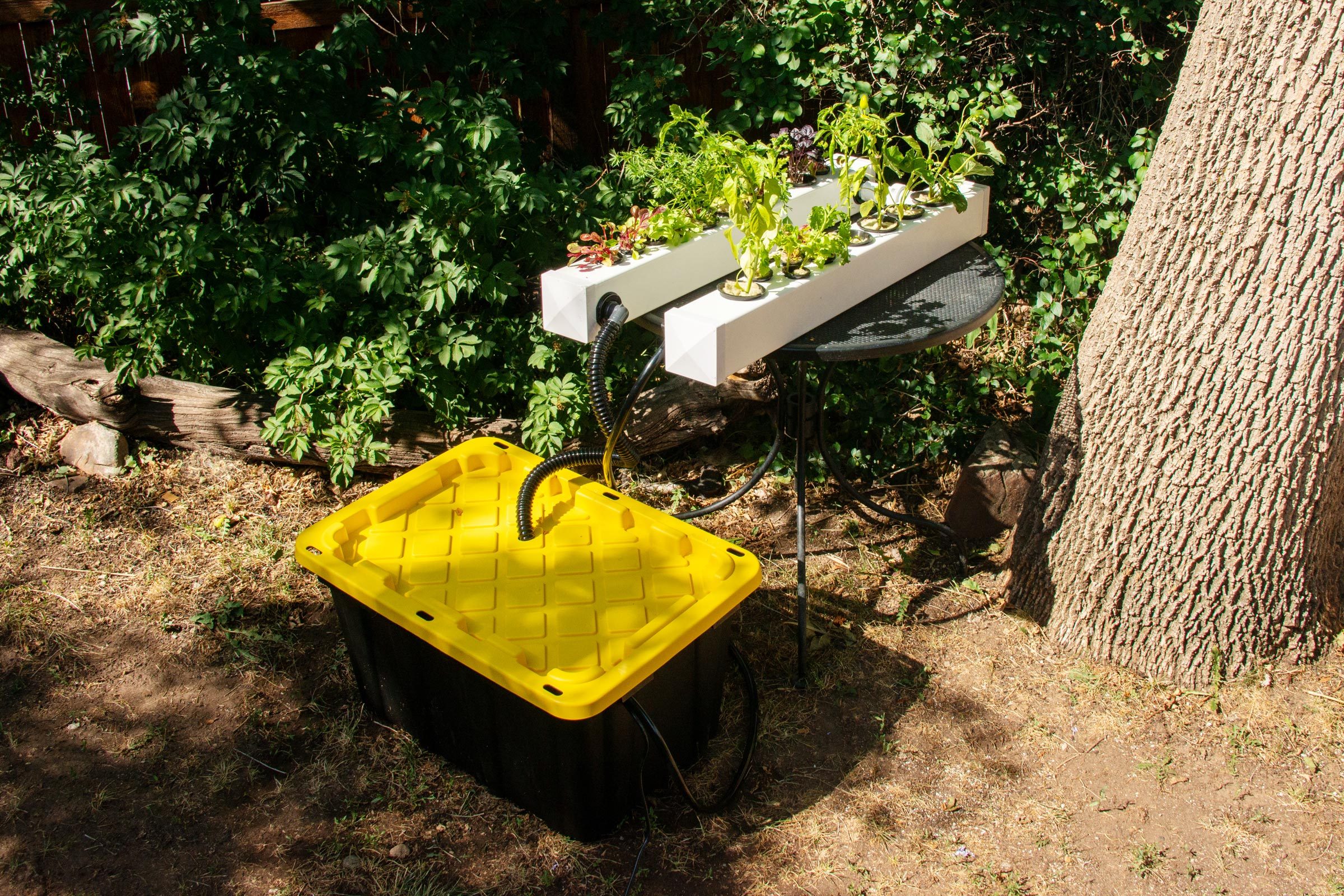

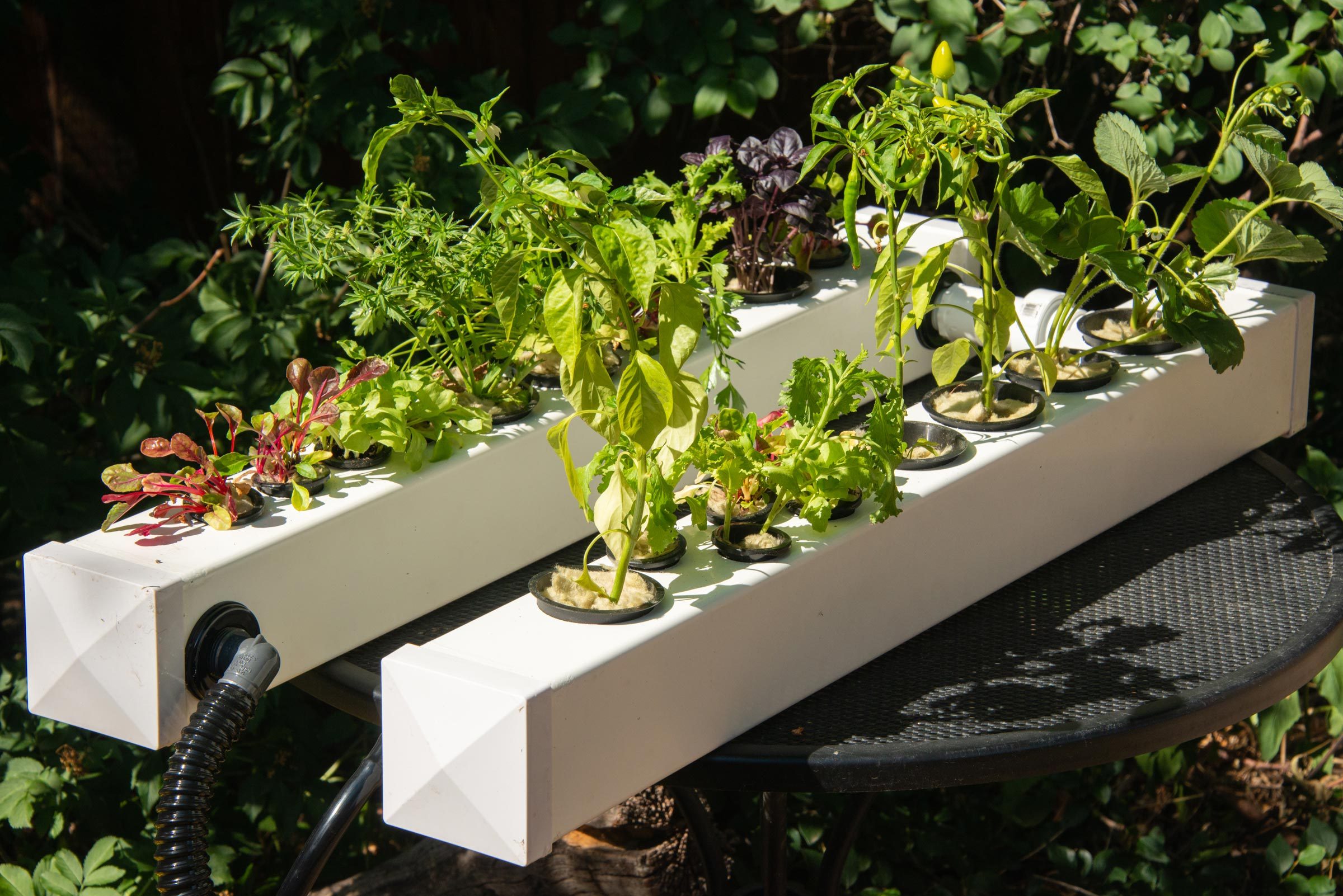

a finished DIY hydroponic garden sitting on an outdoor table next to a tree — Karuna Eberl for Family Handyman

Insert the plant cups into the holes in the rails.
Don’t leave any holes empty. This allows sunlight into the system, which promotes algae growth.

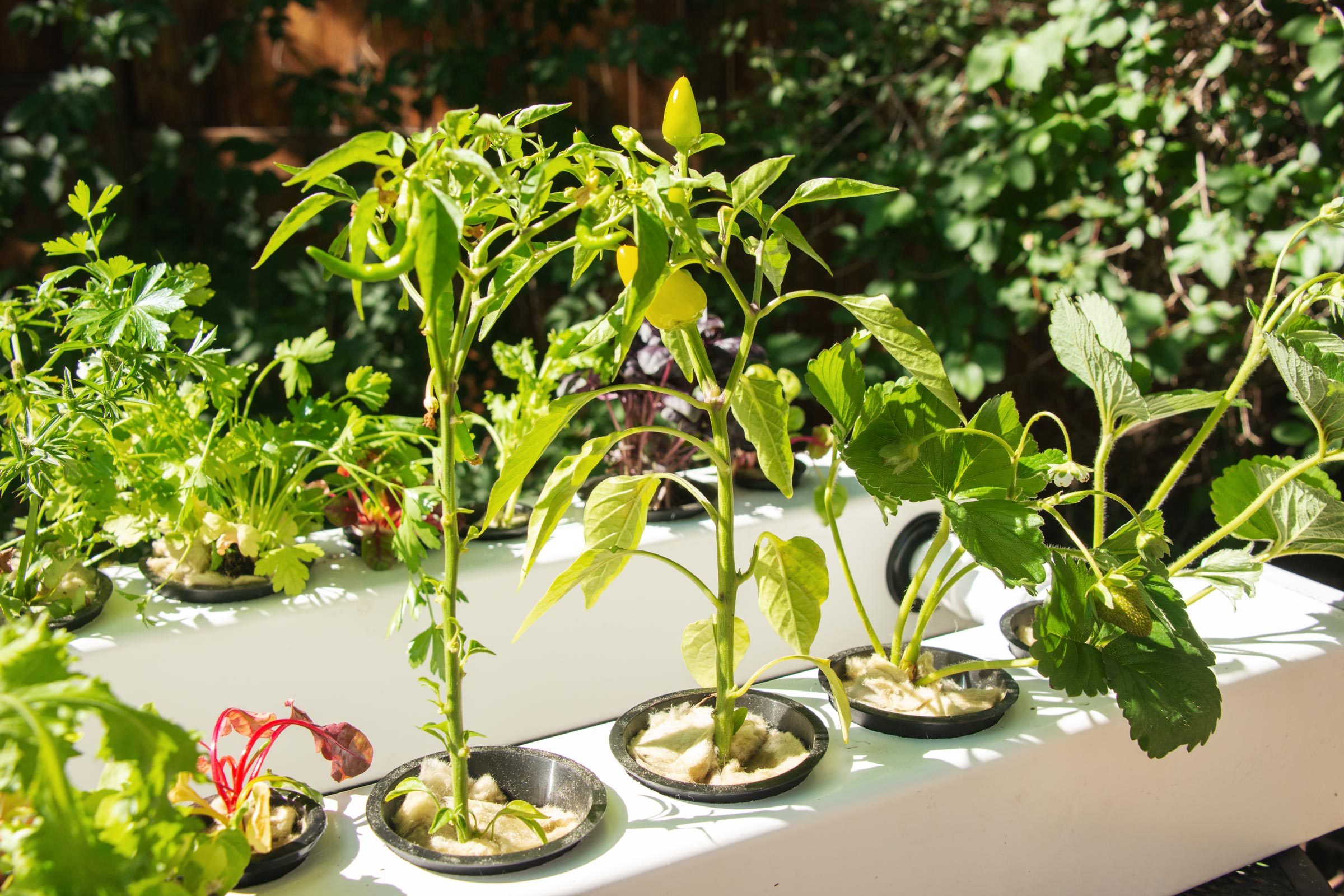

close up of plants growing in a hydroponic garden — Karuna Eberl for Family Handyman
