Hang pictures with confidence by finding the stud you’ve been looking for.
Our editors and experts handpick every product we feature. We may earn a commission from your purchases.Learn more.
Time A few minutes
ComplexityBeginner
CostVaries
Introduction
Whether you're hanging a picture, a mirror or a flat-screen TV, it’s good practice to anchor it into studs in the wall. Using a stud finder will make your job much easier and faster.
Stud Finder Basics
There are two types of stud finders, magnetic and electronic. A magnetic stud finder, as the name suggests, employs a magnet to locate drywall screws or nails hidden behind the mud and paint. An electronic stud finder operates on batteries and detects the density in the wall.
You’ll find several styles and brands of stud finders on the market. Some can even detect plumbing and electrical wiring in your wall, like the Family Handyman Approved Zircon HD900.
Tools Required
- Pencil
- Stud finder
Materials Required
- Painter's tape
Project step-by-step (2)
Step 1
Using an Electronic Stud Finder
- Note: Electronic stud finders detect either the outside edge of the stud or the center of the stud. It’s extremely important to determine which device you have before proceeding.

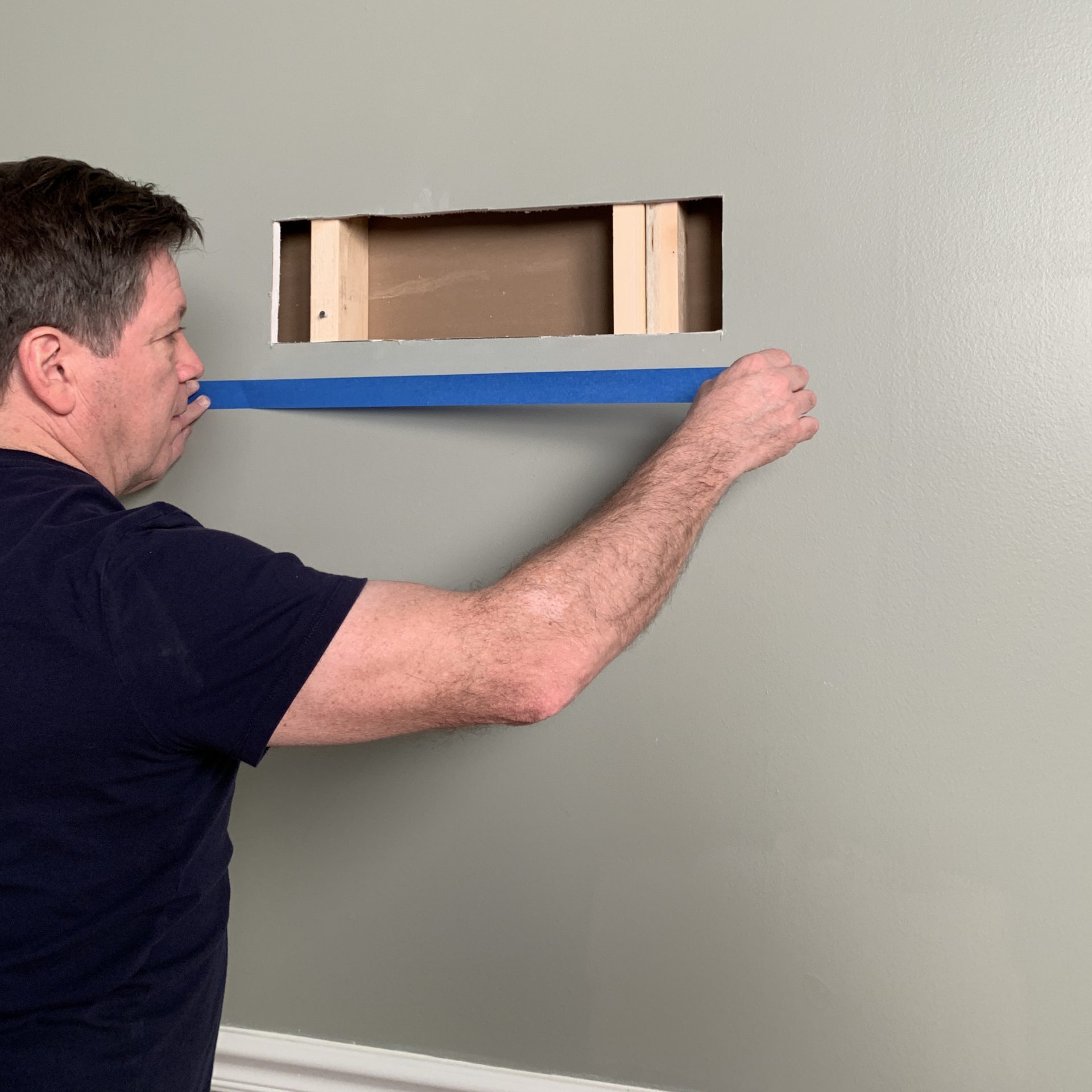

- Begin by sticking a piece of painter’s tape in the area where you want to hang your item.

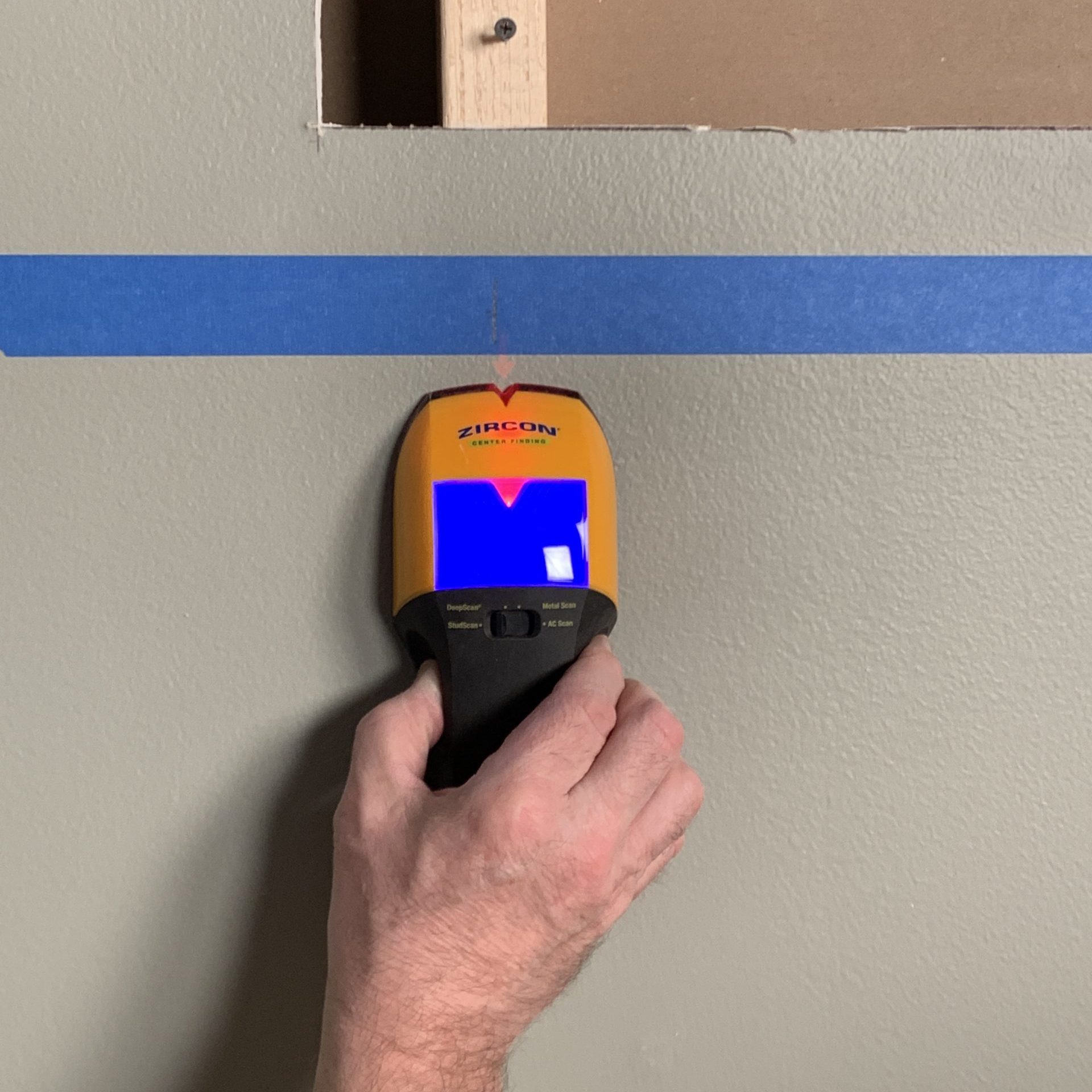

- To locate a stud without pressing the button, hold the stud finder against the wall keeping it upright. Then press and hold the button, slowly moving the device in one direction, until it detects a stud and beeps. Then stop.
- Make a pencil mark on the tape at the edge or center of the stud, depending whether your stud finder locates the center of the stud or the edge. Then release the button.

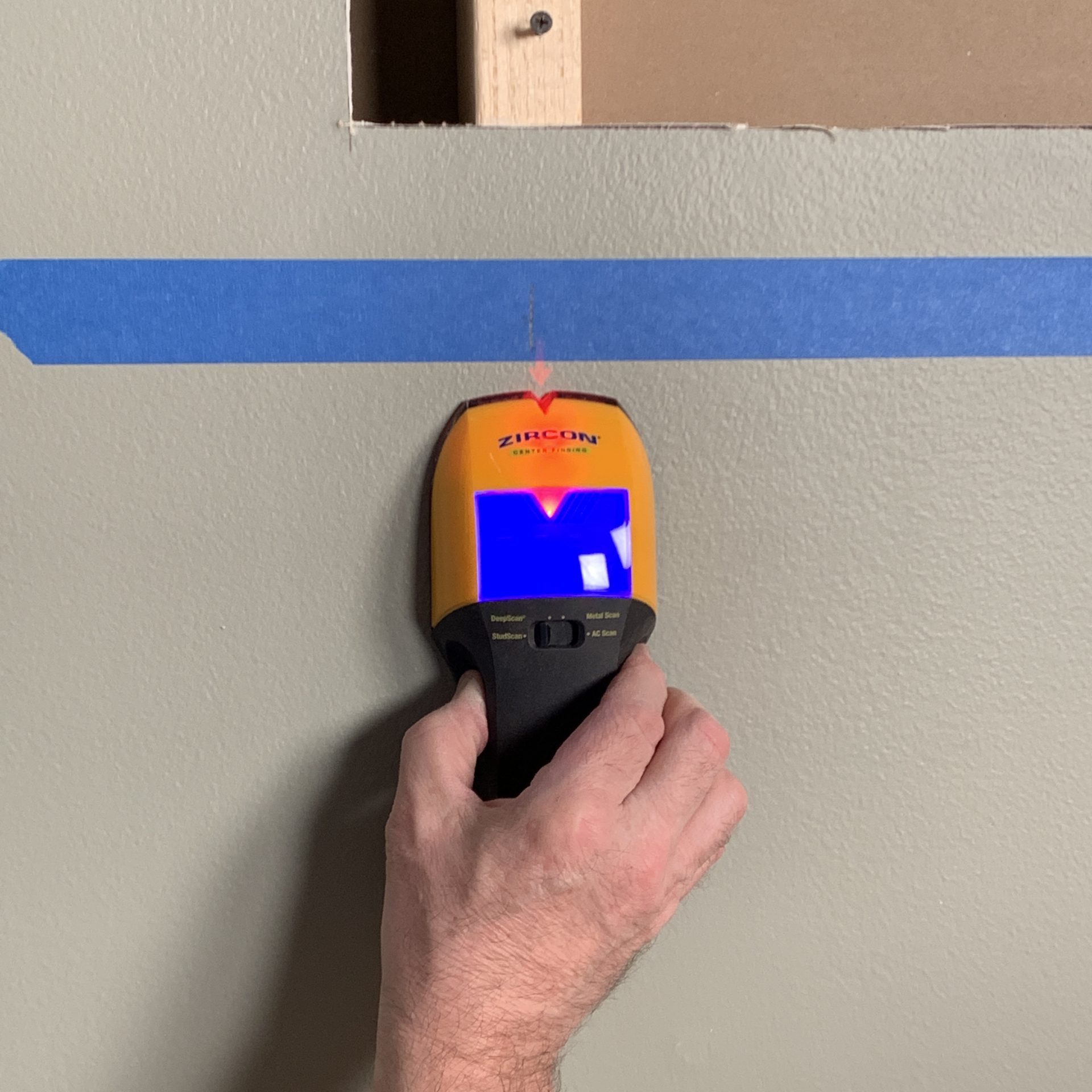

- Place the device about six inches past your mark. Again, holding it firmly against the wall, press and hold the button. Slowly move it in the opposite direction toward your mark until it detects the other edge or center of the stud. Then stop.
- Make another pencil mark on the tape at the other edge or center of the stud and release the button.
- The true center of the stud is between the two marks you just made.
- Note: If an error code appears on the device, it may be you’re pressing the button too soon or moving the stud finder too fast.
- Some multi-scanners have four detection modes: studs, deep studs, metal and live electrical wiring.
Step 2
Magnetic Stud Finders

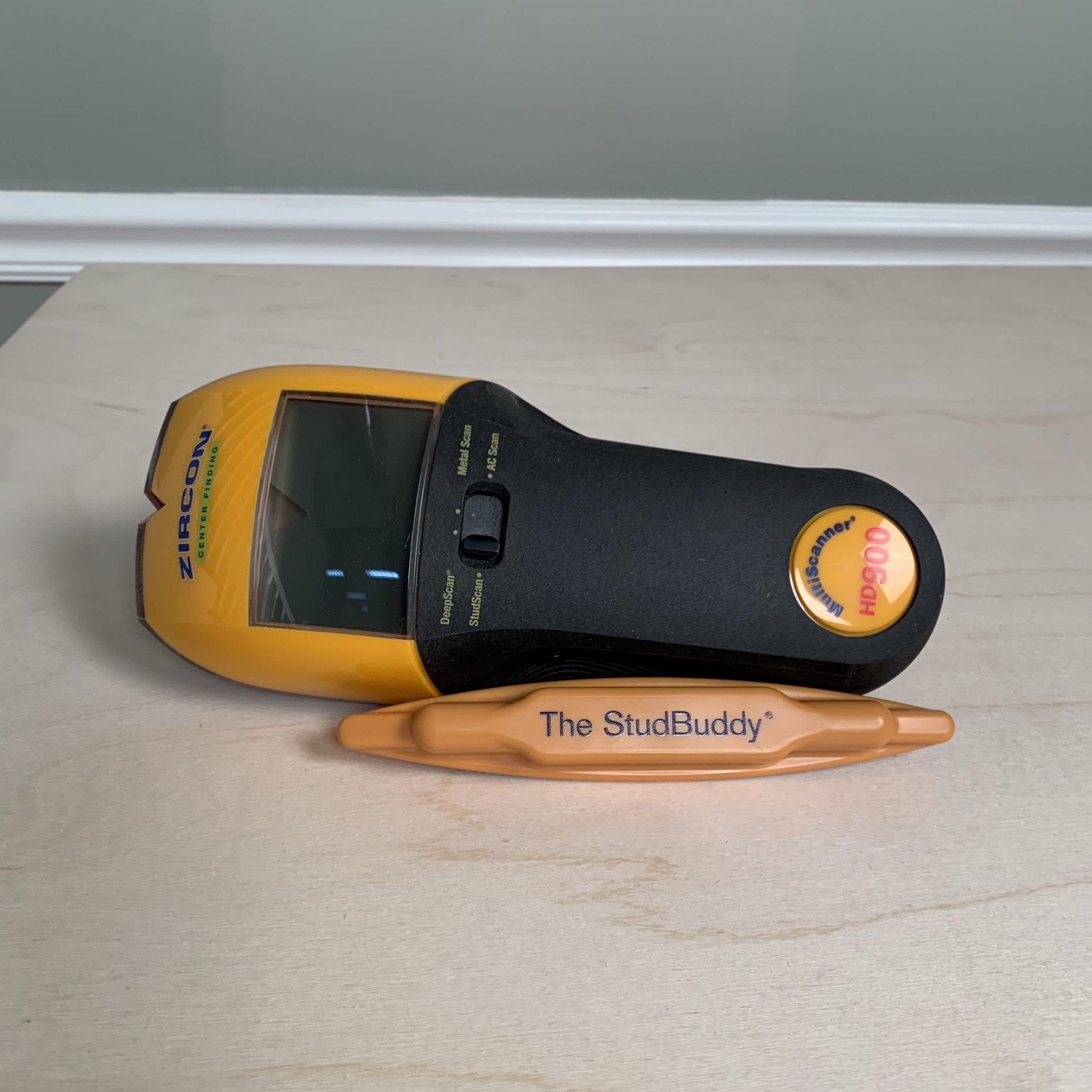

- A magnetic stud finder, like The StudBuddy pictured here, will find a screw, nail or metal stud 90 percent of the time, unless you have several layers of wallpaper and mud on the wall.
- Use a magnetic stud finder the same way you’d use an electronic one, except there’s no button to press.

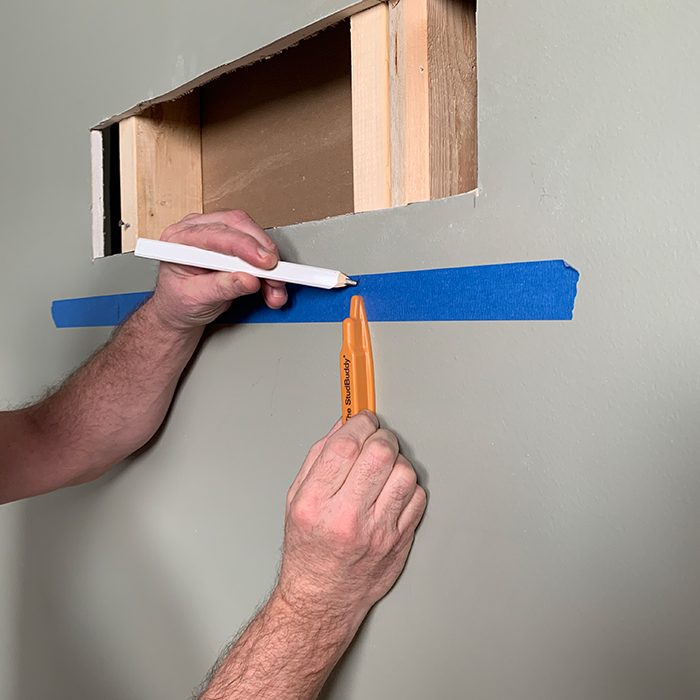

- Hold the magnetic stud finder against the wall. Slowly move it in one direction until it detects a stud and make a mark. This will typically be the center of the stud.
